100.HQ-N03(LB500)

Categories: Brands, Burgmann Replacements, Multi-Spring Seals, Standard Mechanical Seals, Structure

Type：	Multi Spring Seal
Replacement：	Bergmann LB500
Temperature：	-20℃ to +200℃
Pressure：	≤3.5Mpa
Speed：	≤20m/s
Material：	B,A1,Q1,Q2,U2,P,E,N,V,F,G

Product descripton

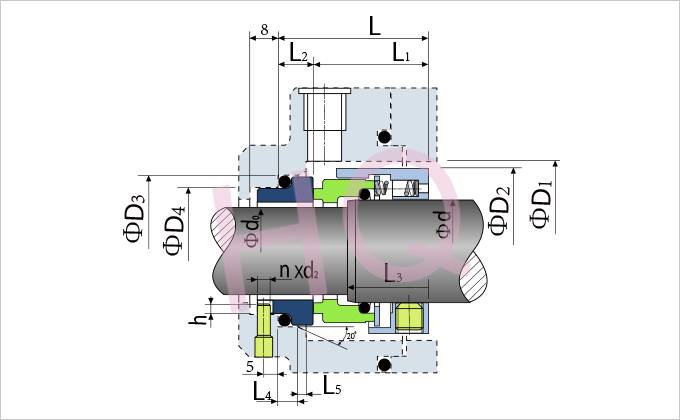

d (mm)	D1	D2	D3	D4	d0	d2	L	L1	L2	L3	L4	L5	h
25	41	39	35	29	20	3	44	34.0	10.0	24	5.5	2.0	3.5
28	44	42	39	33	24	3	44	34.0	10.0	24	5.5	2.0	3.5
30	46	44	40	34	25	3	44	34.0	10.0	24	5.5	2.0	3.5
32	48	46	43	37	27	3	44	34.0	10.0	24	5.5	2.0	3.5
33	49	47	43	37	28	3	44	34.0	10.0	24	5.5	2.0	3.5
35	51	49	45	39	30	3	44	34.0	10.0	24	5.5	2.0	3.5
38	58	55	48	42	33	3	45	35.0	10.0	25	5.0	2.0	3.5
40	60	57	50	44	35	3	45	35.0	10.0	25	5.0	2.0	3.5
42	62	59	56	49	37	4	48	37.0	11.0	25	5.0	2.0	4.0
43	63	60	56	49	38	4	48	37.0	11.0	25	5.0	2.0	4.0
45	65	62	58	51	40	4	48	37.0	11.0	25	5.0	2.0	4.5
48	68	65	61	54	43	4	48	37.0	11.0	25	5.0	2.0	4.5
50	70	67	63	56	45	4	48	37.0	11.0	25	6.0	2.0	4.5
53	73	70	66	59	48	4	48	37.0	11.0	25	6.0	2.5	4.5
55	75	72	70	62	50	4	50	37.0	13.0	25	6.0	2.5	4.5
60	85	77	75	67	55	4	50	37.0	13.0	25	6.0	2.5	5.0
63	88	80	78	70	58	4	50	37.0	13.0	25	6.0	2.5	5.0
65	90	82	80	72	60	4	50	37.0	13.0	25	6.0	2.5	5.0
70	95	87	85	77	65	4	50	37.0	13.0	25	6.0	2.5	5.0
75	104	92	92	83	70	4	53	38.0	15.0	25	7.0	2.5	5.0
80	109	97	97	88	75	4	53	38.0	15.0	25	7.0	2.5	5.0
85	114	102	105	95	80	4	53	37.5	15.5	25	7.0	3.0	5.0
90	119	107	110	100	85	4	53	37.5	15.5	25	7.0	3.0	5.0
95	124	112	115	105	90	4	53	37.5	16.0	25	7.0	3.0	5.0
100	129	117	120	110	95	4	53	37.5	15.5	25	7.0	3.0	5.0
105	134	122	125	115	100	4	53	37.5	15.5	25	7.0	3.0	5.0
110	139	127	130	120	105	4	53	37.5	15.5	25	7.0	3.0	5.0
