| Type： | Grundfos CR,CRI,CRN Ceries Pump Seals |
| Replacement： | Equivalent with Grundfos type H seals, Latty GS2 |
| Temperature： | -30℃ to +200℃ |
| Pressure： | ≤2.5Mpa |
| Speed： | ≤25m/s |
| Material： | B,Q2,U2,P,E,V,F,G |
|

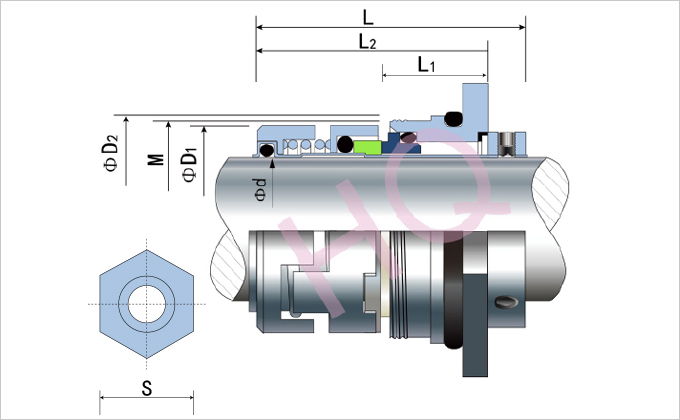

d (mm) |
D1 |
D2 |
S |
L |
L1 |
L2 |
M |
|
12 |
25.0 |
29 |
35.8 |
55.0 |
19 |
48.0 |
M28X1.5 |
|
14 |
27.5 |
38 |
40.8 |
55.5 |
18 |
49.0 |
M33x1.5 |
|
16 |
30.5 |
34 |
40.8 |
57.5 |
20 |
55.5 |
M33x1.5 |
|
22 |
39.5 |
50 |
55.0 |
72.0 |
63 |
25.0 |
M48X1.5/M50X1.5 |
Punching Type.
Suit for CR1，CR3，CR5，CRN1，CRN3，CRN5，CRI1，CRI3，CRI5，CR32，
CR45，CR64，CR90，CRN32， CRN45， CRN64， CRN90 Series Pumps.
