Categories: AES Replacement, Brands, Grundfos Seals, Grundfos-Sarlin, O.E.M.Seals, Pumps
| Type： | Sarlin Upper Seals |
| Replacement： | AES SSAIS06, Upper Seal for Grundfos S range submersible pump seals |
| Temperature： | -30℃ to +200℃ |
| Pressure： | ≤2.5Mpa |
| Speed： | ≤15m/s |
| Material： | B,Q2,U2,P,E,V,F,G |
|

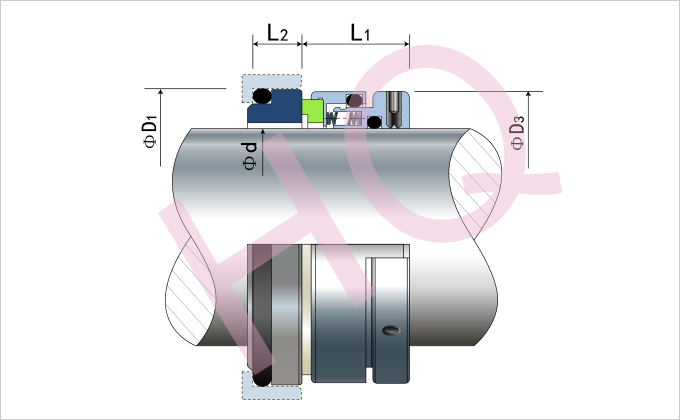

d (mm) |
D1 | D3 | L1 | L2 |
| 30 | 45 | 46 | 24 | 10 |
| 38 | 56 | 58 | 27 | 11 |
| 50 | 70 | 70 | 27 | 13 |
| 65 | 85 | 90 | 32 | 13 |
| d(inch) | D1 | D3 | L1 | L2 |
| 1.181 | 1.772 | 1.811 | 0.945 | 0.394 |
| 1.496 | 2.205 | 2.283 | 1.063 | 0.433 |
| 1.969 | 2.756 | 2.756 | 1.063 | 0.512 |
| 2.559 | 3.348 | 3.543 | 1.260 | 0.512 |
HUA QIU Seals specializes in high-performance mechanical seals, with 30+ years of expertise in designing reliable, innovative sealing solutions for various industries.
