Categories: AES Replacement, Brands, Hidrostal, O.E.M.Seals, Pumps

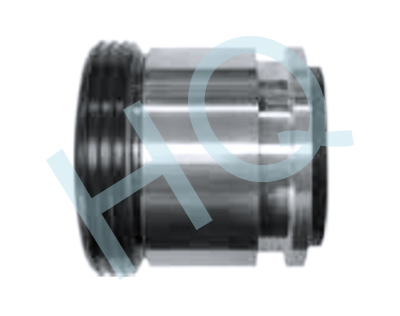

| Type： | Suit HIDROSTAL pumps |
| Replacement： | AES M010H |
| Temperature： | -40 to +220℃ |
| Pressure： | ≤2.5Mpa |
| Speed： | ≤15m/s |
| Material： | Q1,S,A,Q2,V,E,P,M5,M6,G1,T4,M |
| d(mm) | D1 | D3 | L1 | L2 |
| 28.6 | 44.4 | - | 32.6 | 10.6 |
| 38.1 | 53.9 | - | 34.7 | 11.1 |
| 50.8 | 69.8 | - | 45.3 | 12.7 |
| 95.0 | 112.8 | - | 123.8 | 17.4 |
| 100.0 | 119.1 | 123.8 | 17.4 | |
| 115.0 | 142.9 | 134.9 | 36.5 | 12.5 |
| 120.0 | 142.9 | 141.3 | 36.5 | 12.5 |
| d(inch) | D1 | D3 | L1 | L2 |
| 1.125 | 1.750 | - | 1.283 | 0.417 |
| 1.500 | 2.125 | - | 1.366 | 0.437 |
| 2.000 | 2.750 | - | 1.783 | 0.500 |
| 3.740 | 4.439 | - | 4.875 | 0.685 |
| 3.937 | 4.689 | - | 4.875 | 0.685 |
| 4.527 | 5.625 | 5.312 | 1.437 | 0.492 |
| 4.724 | 5.625 | 5.563 | 1.437 | 0.492 |
