1248.LOW-15

Categories: Brands, Lowara, O.E.M.Seals, Pumps, Roten Replacement

Type：	Suit LOWARA pumps
Replacement：	ROTEN L2
Temperature：	-15 to +210℃
Pressure：	≤1.0Mpa
Speed：	≤15m/s
Material：	B,Q2,U2,P,E,N,V,F,G,Alfa

Product descripton

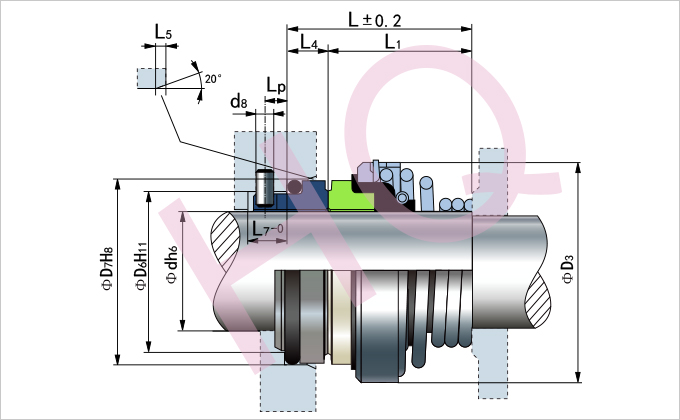

ROTEN TYPE

d (mm)	D3	D6	D7	d8	L	L1	L4	L5	L7	Lp
6	15.0	10.6	13.1	2.0	20.5	16.0	4.5	1.2	6.0	3.5
8	20.0	13.0	17.1	2.0	21.5	16.0	5.5	1.2	6.2	3.5
10	22.0	14.0	18.1	2.0	24.5	19.0	5.5	1.2	6.2	3.5
12	24.0	16.5	20.6	2.0	26.0	20.5	5.5	1.2	6.2	3.5
13	27.0	19.0	23.1	2.0	26.5	20.5	6.0	1.2	6.7	4.0
14	27.0	19.0	23.1	2.0	26.5	20.5	6.0	1.2	6.7	4.0
15	28.0	21.0	26.9	2.5	27.5	20.5	7.0	1.3	7.6	4.0
16	30.0	21.0	26.9	2.5	27.5	20.5	7.0	1.3	7.6	4.0
18	36.0	25.0	30.9	3.0	33.5	25.5	8.0	1.3	8.5	4.5
19	37.0	25.0	30.9	3.0	35.0	27.0	8.0	1.3	8.5	4.5
20	37.0	25.0	30.9	3.0	35.5	27.5	8.0	1.3	8.5	4.5
22	41.5	30.0	35.4	3.5	37.5	29.5	8.0	1.8	8.5	5.0
23	41.5	30.0	35.4	3.5	37.5	29.5	8.0	1.8	8.5	5.0
25	44.6	33.0	38.2	4.0	38.0	29.5	8.5	1.8	9.1	5.0
28	51.5	38.0	43.3	4.0	43.0	34.0	9.0	1.8	9.6	6.0
30	59.0	38.0	43.3	4.0	44.0	35.0	9.0	1.8	9.6	6.0
32	59.0	38.0	43.3	4.0	44.0	35.0	9.0	1.8	9.6	6.0
35	59.0	45.0	53.5	5.0	50.0	38.5	11.5	2.1	12.0	7.5
38	68.0	52.0	60.5	5.0	50.0	38.5	11.5	2.1	12.0	7.5
40	68.0	52.0	60.5	5.0	51.5	40.0	11.5	2.1	12.0	7.5
42	68.0	52.0	60.5	5.0	51.5	40.0	11.5	2.1	12.0	7.5
45	70.0	57.0	65.5	5.0	52.5	41.0	11.5	2.1	13.0	8.5
50	78.0	64.0	72.5	5.0	56.5	45.0	11.5	2.1	13.0	8.5
55	93.0	64.0	72.5	5.0	58.5	47.0	11.5	2.1	13.0	8.5
60	93.0	72.0	79.3	5.0	60.5	49.0	11.5	2.1	13.5	8.5
65	100.0	77.0	84.5	5.0	62.5	51.0	11.5	2.1	13.5	8.5
70	107.0	82.0	89.5	5.0	62.5	51.0	11.5	2.1	13.5	8.5

UNITEN TYPE

d (mm)	D3	D6	D7	d8	L	L1	L4	L5	L7	Lp
10	22.0	17	21	3	26.0	19.0	7	1.5	8.5	5
12	24.0	19	23	3	27.5	20.5	7	1.5	8.5	5
14	27.0	21	25	3	27.5	20.5	7	1.5	8.5	5
16	30.0	23	27	3	27.5	20.5	7	1.5	8.5	5
18	36.0	27	33	3	35.5	25.5	10	2.0	9.0	5
20	37.0	29	35	3	37.5	27.5	10	2.0	9.0	5
22	41.5	31	37	3	39.5	29.5	10	2.0	9.0	5
24	41.5	33	39	3	39.5	29.5	10	2.0	9.0	5
25	44.6	34	40	3	39.5	29.5	10	2.0	9.0	5
28	51.5	37	43	3	44.0	34.0	10	2.0	9.0	5
30	59.0	39	45	3	45.0	35.0	10	2.0	9.0	5
32	59.0	42	48	3	45.0	35.0	10	2.0	9.0	5
33	59.0	42	48	3	48.5	38.5	10	2.0	9.0	5
35	59.0	44	50	3	48.5	38.5	10	2.0	9.0	5
38	68.0	49	56	4	51.5	38.5	13	2.0	9.0	5
40	68.0	51	58	4	53.0	40.0	13	2.0	9.0	5
43	70.0	54	61	4	54.0	41.0	13	2.0	9.0	5
45	70.0	56	63	4	54.0	41.0	13	2.0	9.0	5
48	78.0	59	66	4	59.0	45.0	14	2.0	9.0	5
50	78.0	62	70	4	59.0	45.0	14	2.5	9.0	5
53	93.0	65	73	4	61.0	47.0	14	2.5	9.0	5
55	93.0	67	75	4	61.0	47.0	14	2.5	9.0	5
58	93.0	70	78	4	63.0	49.0	14	2.5	9.0	5
60	93.0	72	80	4	63.0	49.0	14	2.5	9.0	5
63	100.0	75	83	4	65.0	51.0	14	2.5	9.0	5
65	100.0	77	85	4	65.0	51.0	14	2.5	9.0	5
68	107.0	81	90	4	67.0	51.0	16	2.5	9.0	5
70	107.0	83	92	4	67.0	51.0	16	2.5	9.0	5
