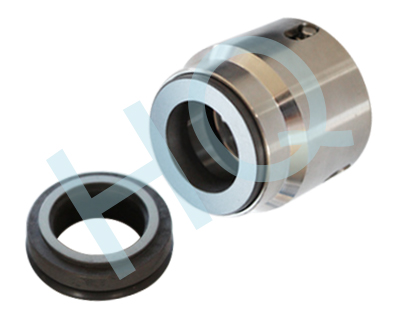

1256.LOW-11(85E)

Categories: Brands, Lowara, O.E.M.Seals, Pumps, Roten Replacement

Type：	Suit for LOWARA Pumps
Replacement：	Roten 85E
Temperature：	-45 to +200℃
Pressure：	≤40 Bar
Speed：	≤15m/s
Material：	B,A1,Q1,Q2,U2,P,E,N,V,F,G,Alfa

Product descripton

d (mm)	d2	D1	D2	D3	L	L1	L2	L3	L4	L5	L6
20	3.0	25	30.9	44	35.5	27.5	8.0	3.7	4.5	1.3	8.5
22	3.5	30	35.4	47	35.5	27.5	8.0	3.7	5.0	1.8	8.5
24	3.5	30	35.4	50	38.0	30.0	8.0	3.7	5.0	1.8	8.5
25	4.0	33	38.2	52	38.5	30.0	8.5	3.7	5.0	1.8	9.1
28	4.0	38	43.3	54	41.5	32.5	9.0	3.7	6.0	1.8	9.6
30	4.0	38	43.3	56	41.5	32.5	9.0	3.7	6.0	1.8	9.6
32	4.0	38	43.3	62	41.5	32.5	9.0	3.7	6.0	1.8	9.6
35	5.0	45	53.5	65	44.0	32.5	11.5	5.4	7.5	2.1	12.0
38	5.0	52	60.5	68	43.5	32.0	11.5	5.4	7.5	2.1	12.0
40	5.0	52	60.5	70	43.5	32.0	11.5	5.4	7.5	2.1	12.0
43	5.0	52	60.5	73	43.5	32.0	11.5	5.4	7.5	2.1	12.0
45	5.0	57	65.5	75	43.5	32.0	11.5	5.4	8.5	2.1	13.0
48	5.0	57	65.5	78	43.5	32.0	11.5	5.4	8.5	2.1	13.0
50	5.0	64	72.5	80	45.0	33.5	11.5	5.4	8.5	2.1	13.0
55	5.0	64	72.5	90	45.0	33.5	11.5	5.4	8.5	2.1	13.0
60	5.0	72	79.3	95	50.0	38.5	11.5	5.4	8.5	2.1	13.5
65	5.0	77	84.5	100	50.0	38.5	11.5	5.4	8.5	2.1	13.5
70	5.0	82	89.5	109	55.5	44.0	11.5	5.4	8.5	2.1	13.5
75	5.0	87	94.5	114	55.5	44.0	11.5	5.4	8.5	2.1	13.5
80	5.0	92	99.5	119	53.5	42.0	11.5	5.4	8.5	2.1	13.5
85	5.0	98	105.5	124	55.5	42.0	13.5	5.4	8.5	2.6	13.5
90	5.0	105	111.5	129	60.5	47.0	13.5	5.4	8.5	2.6	13.5
95	5.0	110	116.5	134	60.5	47.0	13.5	5.4	8.5	2.6	13.5
100	5.0	114	119.5	140	60.5	47.0	13.5	5.4	8.5	2.6	13.5
