18.HQ108

Categories: Brands, Chinese Standard, Elastomeric Seals, Other Seals, Standard Mechanical Seals, Structure

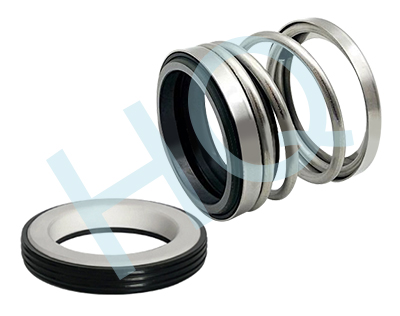

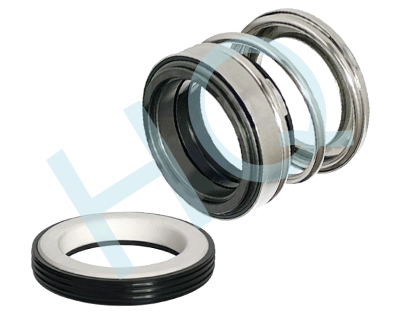

Type：	Elastomer Bellow Mechanical Seal
Temperature：	-30 to +200℃
Pressure：	≤1Mpa
Speed：	≤10m/s
Material：	B,Q2,U2,P,E,N,V,F,G,Alfa

Product descripton

d (mm)	D7	D3	L	L3	L4
8	21	20.0	20	15.0	5.0
9	21	20.0	20	15.0	5.0
10	21/22	20.0	20	15.0	5.0
11	23	20.0	20	15.0	5.0
12	23/26	22.0	20	15.0	5.0
14	25/26/28	24.5	25	20.0	5.0
15	27	26.5	25	20.0	5.0
16	27/28	26.5	25	20.0	5.0
17	33	32.0	25	20.0	5.0
17T	28	27.0	25	19.5	5.5
18	33	32.0	25	20.0	5.0
19	35	34.0	25	20.0	5.0
20	35/36	34.0	25	20.0	5.0
22	37	37.0	28	22.0	6.0
22T	36	35.0	25	20.0	5.0
24	40	39.0	32	24.0	8.0
25	40/41	39.0	32	27.0	8.0
28	43	42.0	35	27.0	7.5
30	45	45.0	35	27.0	7.5
35	50	50.5	37	29.0	8.0
40	58	57.5	40	31.5	9.0
45	63	62.5	40	31.5	8.5
50	70	71.0	45	35.5	9.5
55	75	75.5	45	35.5	9.5
