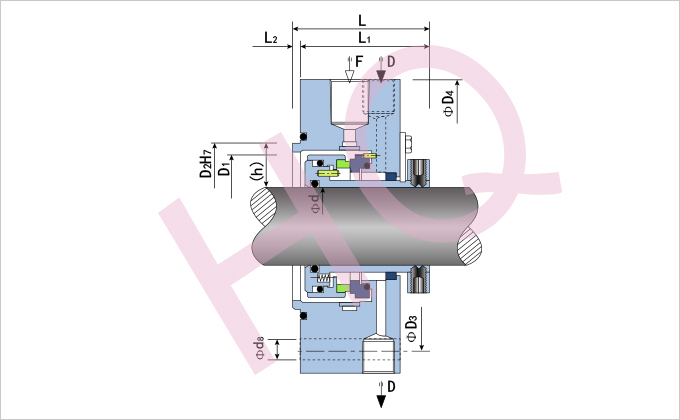

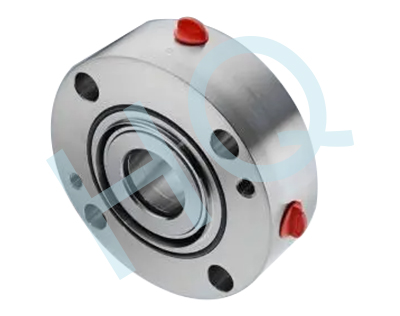

HQCS-B15(APltex-S)
| d(mm) | D1 | D2 | D3 | D4 | d8 | L | L1 | L2 | Anz. | h(min) |
| 20 | 50.4 | 58 | 105 | 127 | 13.5 | 70.5 | 66.5 | 4 | 4 | 19.05 |
| 25 | 55.4 | 63 | 110 | 132 | 13.5 | 70.5 | 66.5 | 4 | 4 | 19.05 |
| 30 | 60.4 | 68 | 115 | 137 | 13.5 | 70.5 | 66.5 | 4 | 4 | 19.05 |
| 35 | 65.4 | 73 | 120 | 142 | 13.5 | 70.5 | 66.5 | 4 | 4 | 19.05 |
| 40 | 70.4 | 78 | 125 | 147 | 13.5 | 70.5 | 66.5 | 4 | 4 | 19.05 |
| 45 | 75.4 | 83 | 135 | 162 | 17.5 | 70.5 | 66.5 | 4 | 4 | 19.05 |
| 50 | 80.4 | 88 | 140 | 167 | 17.5 | 72.5 | 68.5 | 4 | 4 | 19.05 |
| 55 | 85.4 | 93 | 145 | 172 | 17.5 | 72.5 | 68.5 | 4 | 4 | 19.05 |
| 60 | 96.0 | 105 | 160 | 187 | 17.5 | 87.0 | 83.0 | 4 | 4 | 22.22 |
| 65 | 101.0 | 110 | 165 | 192 | 17.5 | 87.0 | 83.0 | 4 | 4 | 22.22 |
| 70 | 106.0 | 115 | 170 | 197 | 17.5 | 87.0 | 83.0 | 4 | 4 | 22.22 |
| 75 | 111.0 | 120 | 175 | 202 | 17.5 | 87.0 | 83.0 | 4 | 4 | 22.22 |
| 80 | 116.0 | 125 | 185 | 218 | 22.0 | 87.0 | 83.0 | 4 | 4 | 22.22 |
| 85 | 123.5 | 136 | 190 | 223 | 22.0 | 86.0 | 71.5 | 14.5* | 4 | 25.40 |
| 90 | 128.5 | 141 | 195 | 228 | 22.0 | 86.0 | 71.5 | 14.5* | 4 | 25.40 |
| 95 | 133.5 | 146 | 200 | 233 | 22.0 | 86.0 | 71.5 | 14.5* | 4 | 25.40 |
| 100 | 138.5 | 151 | 205 | 238 | 22.0 | 86.0 | 71.5 | 14.5* | 4 | 25.40 |
| 105 | 143.5 | 156 | 210 | 243 | 22.0 | 86.0 | 71.5 | 14.5* | 4 | 25.40 |
| 110 | 152.5 | 161 | 215 | 248 | 22.0 | 86.0 | 71.5 | 14.5* | 4 | 25.40 |
HQCS-B16(APltex-T)
|
d (mm) |
D1 |
D2 |
D3 |
D4 |
L |
L1 |
L2 |
d8 |
Anz. |
h (min.) |
|
20 |
50.4 |
58 |
105 |
127 |
96.5 |
68.5 |
28.0 |
13.5 |
4 |
19.05 |
|
25 |
55.4 |
63 |
110 |
132 |
96.5 |
68.5 |
28.0 |
13.5 |
4 |
19.05 |
|
30 |
60.4 |
68 |
115 |
137 |
96.5 |
68.5 |
28.0 |
13.5 |
4 |
19.05 |
|
35 |
65.4 |
73 |
120 |
142 |
96.5 |
68.5 |
28.0 |
13.5 |
4 |
19.05 |
|
40 |
70.4 |
78 |
125 |
147 |
96.5 |
68.5 |
28.0 |
13.5 |
4 |
19.05 |
|
45 |
75.4 |
83 |
135 |
162 |
96.5 |
68.5 |
28.0 |
17.5 |
4 |
19.05 |
|
50 |
80.4 |
88 |
140 |
167 |
100 |
72.0 |
28.0 |
17.5 |
4 |
19.05 |
|
55 |
85.4 |
93 |
145 |
172 |
100 |
72.0 |
28.0 |
17.5 |
4 |
19.05 |
|
60 |
96.0 |
105 |
160 |
187 |
127.5 |
88.0 |
39.5 |
17.5 |
4 |
22.22 |
|
65 |
101.0 |
110 |
165 |
192 |
127.5 |
88.0 |
39.5 |
17.5 |
4 |
22.22 |
|
70 |
106.0 |
115 |
170 |
197 |
127.5 |
88.0 |
39.5 |
17.5 |
4 |
22.22 |
|
75 |
111.0 |
120 |
175 |
202 |
127.5 |
88.0 |
39.5 |
17.5 |
4 |
22.22 |
|
80 |
116.0 |
125 |
185 |
213 |
127.5 |
88.0 |
39.5 |
22.0 |
4 |
22.22 |
|
85 |
123.5 |
136 |
190 |
223 |
131.5 |
92.0 |
39.5 |
22.0 |
4 |
25.40 |
|
90 |
128.5 |
141 |
195 |
228 |
131.5 |
92.0 |
39.5 |
22.0 |
4 |
25.40 |
|
95 |
133.5 |
146 |
200 |
233 |
131.5 |
92.0 |
39.5 |
22.0 |
4 |
25.40 |
|
100 |
138.5 |
151 |
205 |
238 |
131.5 |
92.0 |
39.5 |
22.0 |
4 |
25.40 |
|
105 |
143.5 |
156 |
210 |
243 |
131.5 |
92.0 |
39.5 |
22.0 |
4 |
25.40 |
|
110 |
152.5 |
161 |
215 |
248 |
131.5 |
92.0 |
39.5 |
22.0 |
4 |
25.40 |
