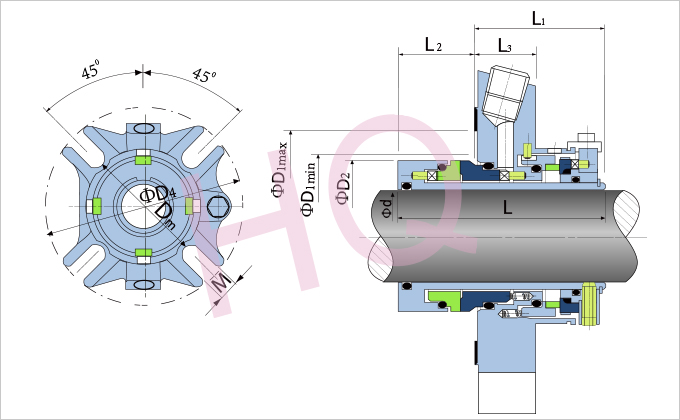

HQCS-B11(CARTEX ANSI-D)-A (use mechined cover)
HQCS-B11(CARTEX ANSI-D)-B (use cast cover)
|
d (inch) |
D2 | D1min | D1max | L | L1 | L2 | L3 | Dm | D4 | M | Connection |
| 1.000 | 1.693 | 1.732 | 2.205 | 3.406 | 2.102 | 1.303 | 1.000 | 2.441 | 3.937 | 0.0433 | 1/4NPT |
| 1.125 | 1.713 | 1.752 | 2.205 | 3.228 | 3.228 | 1.343 | 1.000 | 2.441 | 4.134 | 0.437 | 1/4NPT |
| 1.250 | 1.969 | 2.008 | 2.402 | 3.406 | 2.102 | 1.303 | 1.000 | 2.756 | 4.252 | 0.433 | 1/4NPT |
| 1.375 | 1.961 | 2.000 | 2.402 | 3.406 | 2.083 | 1.303 | 1.000 | 2.756 | 4.213 | 0.437 | 1/4NPT |
| 1.500 | 2.200 | 2.244 | 2.717 | 3.406 | 2.102 | 1.303 | 1.000 | 2.953 | 4.488 | 0.551 | 3/8NPT |
| 1.625 | 2.340 | 2.421 | 2.795 | 3.406 | 2.102 | 1.303 | 1.000 | 3.091 | 4.921 | 0.551 | 3/8NPT |
| 1.750 | 2.461 | 2.500 | 2.953 | 3.406 | 2.102 | 1.303 | 1.000 | 3.228 | 5.118 | 0.559 | 3/8NPT |
| 1.875 | 2.583 | 2.661 | 3.070 | 3.406 | 2.102 | 1.303 | 1.000 | 3.307 | 5.118 | 0.551 | 3/8NPT |
| 2.000 | 2.677 | 2.756 | 3.189 | 3.406 | 2.102 | 1.303 | 1.000 | 3.425 | 5.472 | 0.630 | 3/8NPT |
| 2.125 | 2.834 | 2.913 | 3.583 | 3.406 | 2.102 | 1.303 | 1.000 | 3.819 | 5.512 | 0.650 | 3/8NPT |
| 2.250 | 2.960 | 3.039 | 3.583 | 3.406 | 2.102 | 1.303 | 1.000 | 3.858 | 5.866 | 0.650 | 3/8NPT |
| 2.375 | 3.070 | 3.125 | 3.590 | * | * | * | 1.000 | * | 6.181 | 0.709 | 3/8NPT |
| 2.500 | 3.212 | 3.291 | 3.937 | 3.406 | 2.102 | 1.303 | 1.122 | 4.528 | 6.693 | 0.709 | 3/8NPT |
| 2.625 | 3.338 | 3.417 | 4.016 | 3.406 | 2.102 | 1.303 | 1.250 | 4.528 | 6.378 | 0.630 | 3/8NPT |
| 2.750 | 3.660 | 3.740 | 4.370 | 3.406 | 2.102 | 1.303 | 1.260 | 4.646 | 7.441 | 0.709 | 3/8NPT |
| 3.000 | 3.937 | 4.016 | 4.724 | 4.252 | 2.516 | 1.736 | 1.260 | 5.000 | 7.835 | 0.709 | 3/8NPT |
| 3.250 | 4.189 | 4.288 | 4.921 | 4.252 | 2.516 | 1.736 | 1.260 | 5.315 | 7.830 | 0.709 | 3/8NPT |
| 3.750 | 4.689 | 4.750 | 5.433 | * | * | * | 1.000 | * | 8.189 | 0.866 | 3/8NPT |
