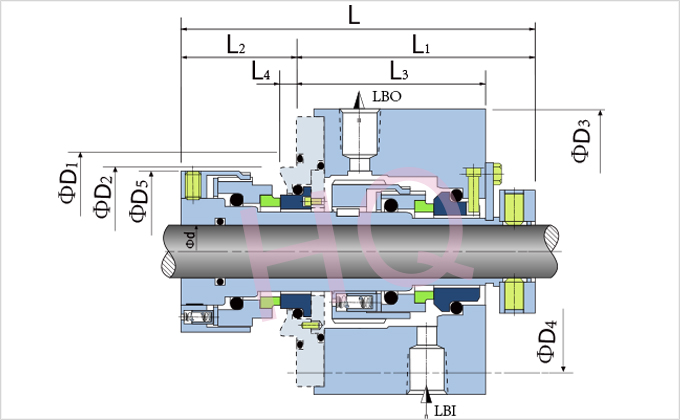

HQCS-B05K(H75VK)
|
d (mm) |
D1 | D2 | D3 | D4 | D5 | L | L1 | L2 | L3 | L4 |
| 20 | 85 | 70 | 129 | 105 | 60 | 144.0 | 97.0 | 47.0 | 81.0 | 6.0 |
| 30 | 95 | 80 | 139 | 115 | 70 | 145.5 | 96.0 | 49.5 | 77.5 | 8.0 |
| 40 | 105 | 90 | 149 | 125 | 82 | 146.5 | 96.5 | 50.0 | 78.0 | 8.0 |
| 50 | 115 | 100 | 168 | 140 | 94 | 158.0 | 106.5 | 51.5 | 88.0 | 10.5 |
| 60 | 135 | 120 | 188 | 160 | 114 | 165.0 | 107.5 | 57.5 | 90.2 | 4.5 |
| 70 | 145 | 130 | 198 | 170 | 124 | 170.0 | 107.5 | 62.5 | 85.0 | 10.0 |
| 80 | 155 | 140 | 208 | 180 | 134 | 175.0 | 107.5 | 67.5 | 85.0 | 12.5 |
| 90 | 175 | 160 | 238 | 205 | 146 | 178.8 | 116.9 | 61.9 | 94.4 | 6.9 |
| 100 | 185 | 170 | 248 | 215 | 163 | 185.0 | 117.5 | 67.5 | 92.0 | 11.5 |
| 110 | 195 | 180 | 258 | 225 | 173 | 188.0 | 116.5 | 71.5 | 91.0 | 15.5 |
HQCS-B05N(H75VN)
|
d (mm) |
D1 |
D2 |
D3 |
D4 |
D5 |
L |
L1 |
L2 |
L3 |
L4 |
|
20 |
85 |
70 |
138 |
105 |
50 |
95.0 |
94.0 |
1.0 |
76.0 |
6 |
|
30 |
95 |
80 |
148 |
115 |
62 |
100.5 |
98.0 |
2.5 |
77.0 |
6 |
|
40 |
105 |
90 |
158 |
125 |
72 |
105.5 |
98.5 |
7.0 |
77.5 |
6 |
|
50 |
115 |
100 |
168 |
140 |
86 |
111.5 |
99.5 |
12.0 |
78.5 |
6 |
|
60 |
135 |
120 |
188 |
160 |
99 |
120.5 |
102.0 |
18.5 |
81.0 |
6 |
|
70 |
145 |
130 |
198 |
170 |
109 |
124.5 |
106.0 |
18.0 |
81.0 |
6 |
|
80 |
155 |
140 |
208 |
180 |
119 |
129.0 |
106.0 |
23.0 |
81.0 |
6 |
|
90 |
175 |
160 |
238 |
205 |
129 |
129.0 |
106.0 |
23.0 |
81.0 |
6 |
|
100 |
185 |
170 |
248 |
215 |
153 |
133.0 |
109.0 |
24.0 |
81.0 |
6 |
|
110 |
195 |
180 |
258 |
225 |
168 |
133.0 |
109.0 |
24.0 |
81.0 |
6 |
