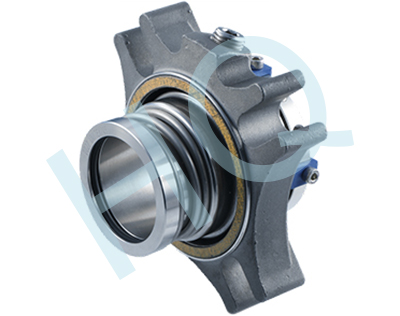

224.HQCS-B07(Unitex)

Categories: Brands, Burgmann Replacements, Cartridge Seals, Single Cartridge Seals, Structures

Type：	Single Cartridge Seal
Replacement：	Burgmann Unitex
Temperature：	-20℃ to +90℃
Pressure：	≤1.2Mpa
Speed：	≤10m/s
Material：	Q1,Q2,U2,T,V,M1,F,G,M

Product descripton

d (mm)	D1	D2		D3	D4	L1	L2	L3	L4	T	Dm	M
d (mm)	D1	min	max	D3	D4	L1	L2	L3	L4	T	Dm	M
25	60	41.5	51.0	38.4	105	65.5	41.0	24.5	23	1/4 NPT	62	13.2
28	60	44.5	52.0	42.4	105	68.0	41.5	26.5	23	1/4 NPT	62	13.2
30	63	45.5	56.0	42.4	105	68.0	41.5	26.5	23	1/4 NPT	67	13.2
33	65	48.0	57.0	45.0	110	69.5	42.0	27.5	23	1/4 NPT	67	13.2
35	68	50.8	61.5	49.1	107	72.5	44.0	28.5	26	1/4 NPT	70	13.2
38	73	54.5	66.0	51.3	123	72.5	44.0	28.5	26	1/4 NPT	75	14.7
40	75	57.5	68.0	54.3	123	75.5	44.5	31.0	26	1/4 NPT	77	14.7
43	78	59.5	70.5	56.3	133	76.5	44.5	32.0	26	1/4 NPT	80	14.7
45	79	63.0	73.0	59.8	130	76.5	44.5	32.0	26	1/4 NPT	82	14.2
48	82	65.0	75.0	61.8	130	78.0	45.0	33.0	26	1/4 NPT	84	14.2
50	85	68.0	78.0	64.8	148	80.5	47.0	33.5	28	3/8 NPT	87	14.7
53	95	70.0	87.0	66.8	148	81.5	47.0	34.5	28	3/8 NPT	97	17.5
55	90	73.0	83.0	71.0	148	83.5	47.0	36.5	28	3/8 NPT	92	17.5
60	100	79.0	91.0	76.5	157	85.5	47.0	38.5	28	3/8 NPT	102	17.5
65	108	85.7	98.5	83.0	162	88.0	48.5	39.5	28	3/8 NPT	110	17.5
70	116	94.0	108.0	88.0	178	92.0	48.5	43.5	28	3/8 NPT	118	17.5
75	125	98.4	118.0	93.4	190	93.5	49.0	44.5	28	3/8 NPT	127	17.5

d	D1	D2		D3	D4	L1	L2	L3	L4	T	Dm	M
d	D1	min	max	D3	D4	L1	L2	L3	L4	T	Dm	M
1.000	2.362	1.634	2.000	1.512	4.134	2.579	1.614	0.965	0.906	1/4 NPT	2.440	0.520
1.125	2.362	1.750	2.050	1.669	4.134	2.677	1.634	1.043	0.906	1/4 NPT	2.441	0.520
1.250	2.559	1.890	2.250	1.772	4.331	2.736	1.654	1.083	0.906	1/4 NPT	2.638	0.520
1.375	2.667	2.000	2.420	1.933	4.213	2.854	1.732	1.122	1.024	1/4 NPT	2.756	0.520
1.500	2.874	2.146	2.625	2.02	4.843	2.854	1.732	1.122	1.024	1/4 NPT	2.950	0.579
1.750	3.110	2.480	2.812	2.354	5.118	3.012	1.752	1.260	1.024	1/4 NPT	3.230	0.559
1.875	3.228	2.559	2.940	2.433	5.118	3.071	1.772	1.299	1.024	1/4 NPT	3.307	0.559
2.000	3.346	2.677	3.190	2.551	5.827	3.169	1.850	1.319	1.102	3/8 NPT	3.430	0.579
2.125	3.740	2.875	3.437	2.795	5.512	3.287	1.850	1.437	1.102	3/8 NPT	3.820	0.689
2.250	3.780	2.992	3.560	2.874	6.181	3.287	1.850	1.437	1.102	3/8 NPT	3.858	0.689
2.375	3.937	3.110	3.590	3.012	6.181	3.366	1.850	1.516	1.102	3/8 NPT	4.020	0.689
2.500	4.173	3.287	3.800	3.209	6.693	3.465	1.909	1.555	1.102	3/8 NPT	4.252	0.689
2.625	4.252	3.374	3.937	3.268	6.378	3.465	1.909	1.555	1.102	3/8 NPT	4.331	0.689
