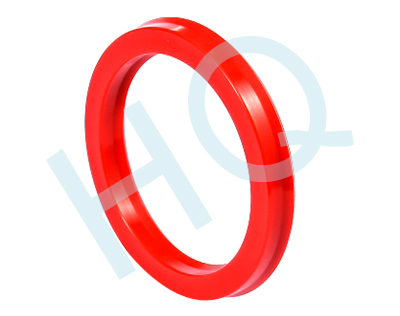

2314.U+S

Categories: Oil Seals, Rod Seals

Type：	Rod Seals
Temperature：	-30 to +80℃
Pressure：	≤35MPa
Speed：	≤0.8m/s
Material：	TPU, NBR

Product descripton

mould	d	D	h	HA	HB	C		mould	d	D	h	HA	HB	C
U+S	5.2	11	4	–	–	–		U+S	60	70	6	7	9	3
U+S	7	17	5	–	–	–		U+S	60	70	8	–	–	–
U+S	11	18	5	–	–	–		U+S	60	71	7	8	10	3
U+S	11.2	19.2	5	5.7	7.2	2		U+S	60	75	8	–	–	–
U+S	12.5	20.5	5	5.7	7.2	2		U+S	63	73	6	7	9	3
U+S	14	22	5	5.7	7.2	2		U+S	65	70	8	–	–	–
U+S	16	24	5	5.7	7.2	2		U+S	65	75	6	7	9	3
U+S	18	25.5	5	–	–	–		U+S	67	77	6	7	9	3
U+S	18	26	5	5.7	7.2	2		U+S	70	80	6	7	9	3
U+S	20	28	5	5.7	7.2	2		U+S	71	80	6	7	9	3
U+S	22.4	30	5	5.7	7.2	2		U+S	75	85	6	7	9	3
U+S	23.5	31.5	5	5.7	7.2	2		U+S	80	90	6	7	9	3
U+S	25	33	5	5.7	7.2	2		U+S	85	100	9	10	13	4
U+S	25	33	6	–	–	–		U+S	85	100	10	11	14	4
U+S	28	35.5	5	5.7	7.2	2		U+S	90	105	9	10	13	4
U+S	30	40	6	7	9	3		U+S	95	110	9	10	13	4
U+S	31.5	41.5	6	7	9	3		U+S	98	112	9	10	13	4
U+S	32	42	6	7	9	3		U+S	100	115	9	10	13	4
U+S	35	45	6	7	9	3		U+S	100	115	10	–	–	–
U+S	35	45	7	–	–	–		U+S	105	120	10	–	–	–
U+S	35.5	45	6	7	9	3		U+S	110	125	10	–	–	–
U+S	38	48	6	7	9	3		U+S	112	125	9	10	13	4
U+S	40	50	6	7	9	3		U+S	115	130	9	10	13	4
U+S	40	50	7	–	–	–		U+S	115	130	10	–	–	–
U+S	41.3	50.3	6.5	7.5	9.5	3		U+S	118	133	9	–	–	–
U+S	45	55	6	7	9	3		U+S	120	135	9	–	–	–
U+S	45	55	7	–	–	–		U+S	120	135	10	–	–	–
U+S	45	56	7	8	10	3		U+S	125	140	9	10	13	4
U+S	50	60	6	7	9	3		U+S	127	140	14.3	15.3	18.3	4
U+S	50	60	8	–	–	–		U+S	136	150	9	10	13	4
U+S	53	63	6	7	9	3		U+S	140	155	9	10	13	4
U+S	55	65	6	7	9	3		U+S	145	160	9	10	13	4
U+S	56	66	6	7	9	3		U+S	160	175	9	10	13	4
U+S	58	68	6	7	9	3		U+S	220	240	12	13	16	5
