2323.CQ

Categories: Oil Seals, Piston Seals

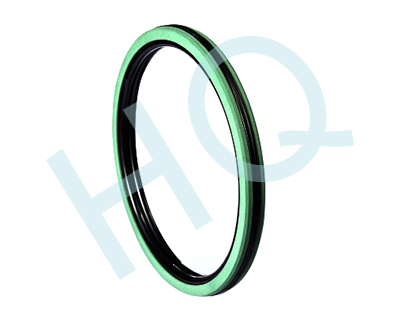

Type：	Piston Seals
Temperature：	-130 to +260℃
Pressure：	≤50MPa
Speed：	≤3m/s
Material：	PTFE 052 filled with 40% copper powder

Product descripton

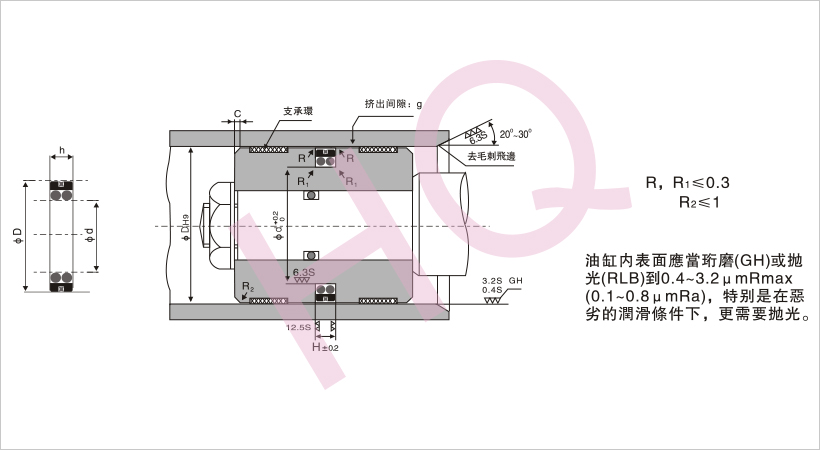

mould	D	d	H		mould	D	d	H
CQ	40	30	6.3		CQ	140	122	12.3
CQ	42	32	6.3		CQ	150	132	12.3
CQ	45	35	6.3		CQ	160	142	12.3
CQ	48	38	6.3		CQ	170	152	12.3
CQ	50	40	6.3		CQ	180	162	12.3
CQ	52	42	6.3		CQ	190	172	12.3
CQ	55	45	6.3		CQ	200	182	12.3
CQ	60	50	6.3		CQ	210	192	12.3
CQ	63	53	6.3		CQ	220	202	12.3
CQ	65	55	6.3		CQ	230	212	12.3
CQ	70	60	6.3		CQ	240	222	12.3
CQ	75	65	6.3		CQ	250	232	12.3
CQ	80	67	8.3		CQ	280	262	12.3
CQ	85	72	8.3		CQ	300	282	12.3
CQ	90	77	8.3		CQ	320	302	12.3
CQ	95	82	8.3		CQ	350	332	12.3
CQ	100	87	8.3		CQ	400	382	12.3
CQ	105	92	8.3		CQ	420	402	12.3
CQ	110	97	8.3		CQ	450	432	12.3
CQ	115	102	8.3		CQ	480	449	12.3
CQ	120	107	8.3		CQ	500	469	12.3
CQ	125	112	8.3		CQ	600	569	12.3
CQ	130	117	8.3		CQ	700	669	12.3
CQ	135	117	12.3
