2326.H754

Categories: Oil Seals, Piston Seals

Type：	Piston Seals
Temperature：	-40 to +100℃
Pressure：	≤100 Bar
Speed：	≤1.0m/s
Material：	thermoplastic elastomer, NBR

Product descripton

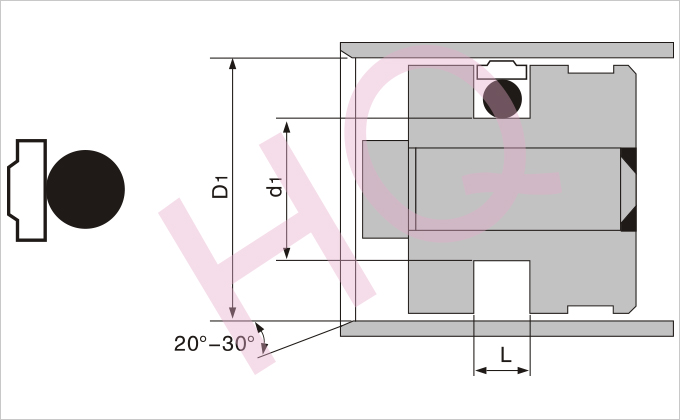

mould	D1	d1	L		mould	D1	d1	L
H754	15	7.5	3.2		H754	95	79.5	6.3
H754	16	8.5	3.2		H754	95	84	4.2
H754	20	12.5	3.2		H754	100	84.5	6.3
H754	25	17.5	3.2		H754	105	89.5	6.3
H754	28	20.5	3.2		H754	110	94.5	6.3
H754	30	22.5	3.2		H754	115	99.5	6.3
H754	32	24.5	3.2		H754	120	99	8.1
H754	35	27.5	3.2		H754	120	104.5	6.3
H754	36	28.5	3.2		H754	125	104	8.1
H754	40	29	4.2		H754	125	109.5	6.3
H754	40	32.5	3.2		H754	127	111.5	6.3
H754	42	31	4.2		H754	130	109	8.1
H754	45	34	4.2		H754	130	114.5	6.3
H754	50	34.5	6.3		H754	135	114	8.1
H754	50	39	4.2		H754	140	119	8.1
H754	55	39.5	6.3		H754	140	124.5	6.3
H754	55	44	4.2		H754	150	129	8.1
H754	60	44.5	6.3		H754	160	139	8.1
H754	60	49	4.2		H754	165	144	8.1
H754	63	47.5	6.3		H754	170	149	8.1
H754	63	50	6.3		H754	180	159	8.1
H754	63	52	4.2		H754	190	169	8.1
H754	65	49.5	6.3		H754	200	179	8.1
H754	65	52	6.3		H754	210	189	8.1
H754	65	54	4.2		H754	220	199	8.1
H754	70	54.5	6.3		H754	225	204	8.1
H754	70	57	6.3		H754	230	209	8.1
H754	70	59	4.2		H754	240	219	8.1
H754	75	59.5	6.3		H754	250	229	8.1
H754	75	64	4.2		H754	260	239	8.1
H754	80	64.5	6.3		H754	270	249	8.1
H754	80	69	4.2		H754	280	259	8.1
H754	85	69.5	6.3		H754	300	279	8.1
H754	90	74.5	6.3
