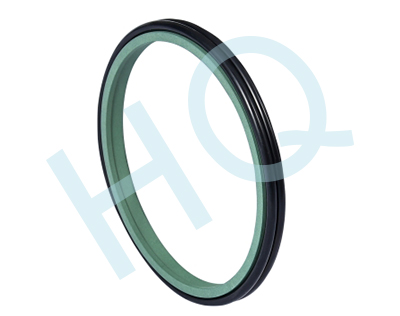

2395.GPTA

Categories: Oil Seals, Wiper Seals

Type：	Wiper Seals
Temperature：	-30 to +200℃
Pressure：	≤2MPa
Speed：	≤15m/s
Material：	The wear ring is made of PTFE bronze composite; The O-ring is NBR or FKM

Product descripton

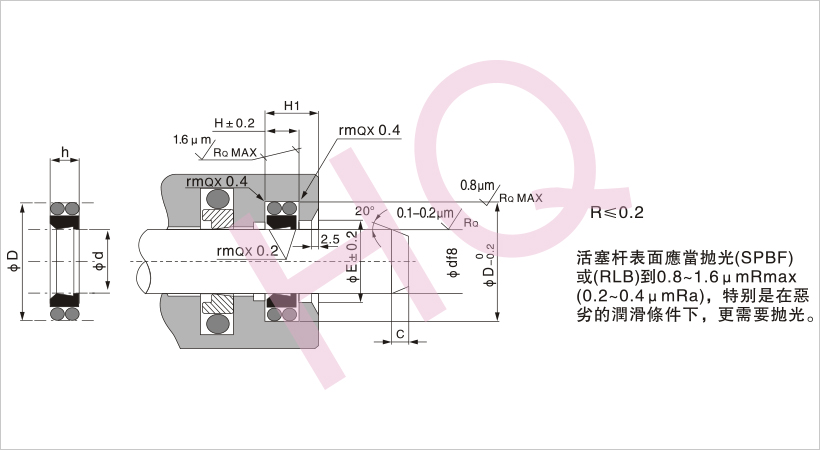

mould	d	S1	H	H1	D2	C	r		mould	d	S1	H	H1	D2	C	r
GPTA	20	27.6	4.2	8.2	21	3	0.4		GPTA	110	122.2	8.1	12.1	112	4	2
GPTA	25	32.6	4.2	8.2	26	3	0.4		GPTA	115	127.2	8.1	12.1	117	4	2
GPTA	28	35.6	4.2	8.2	29	3	0.4		GPTA	120	132.2	8.1	12.1	122	4	2
GPTA	30	37.6	4.2	8.2	31	3	0.4		GPTA	125	137.2	8.1	12.1	127	6	2
GPTA	32	39.6	4.2	8.2	33	3	0.4		GPTA	130	142.2	8.1	12.1	132	6	2
GPTA	35	42.6	4.2	8.2	36	3	0.4		GPTA	140	156	11.5	15.5	142	6	2
GPTA	36	43.6	4.2	8.2	37	3	0.4		GPTA	150	166	11.5	15.5	152	6	2
GPTA	40	48.8	6.3	10.3	41.5	3	1.2		GPTA	160	176	11.5	15.5	162	6	2
GPTA	42	50.8	6.3	10.3	43.5	3	1.2		GPTA	170	186	11.5	15.5	172	6	2
GPTA	45	53.8	6.3	10.3	46.5	3	1.2		GPTA	180	196	11.5	15.5	182	6	2
GPTA	50	58.8	6.3	10.3	51.5	3	1.2		GPTA	200	216	11.5	15.5	202	6	2
GPTA	55	63.8	6.3	10.3	56.5	4	1.2		GPTA	220	236	11.5	15.5	222	8	2
GPTA	56	64.8	6.3	10.3	57.5	4	1.2		GPTA	230	246	11.5	15.5	232	8	2
GPTA	60	68.8	6.3	10.3	61.5	4	1.2		GPTA	240	256	11.5	15.5	242	8	2
GPTA	63	71.8	6.3	10.3	64.5	4	1.2		GPTA	250	266	11.5	15.5	252	8	2
GPTA	65	73.8	6.3	10.3	66.5	4	1.2		GPTA	260	276	11.5	15.5	262	8	2
GPTA	70	82.2	8.1	12.1	72	4	2		GPTA	280	296	11.5	15.5	282	8	2
GPTA	75	87.2	8.1	12.12	77	4	2		GPTA	300	316	11.5	15.5	302	8	2
GPTA	80	92.2	8.1	12.1	82	4	2		GPTA	320	336	11.5	15.5	322	8	2
GPTA	85	97.2	8.1	12.12	87	4	2		GPTA	340	356	11.5	15.5	342	8	2
GPTA	90	102.2	8.1	12.1	92	4	2		GPTA	360	376	11.5	15.5	362	8	2
GPTA	100	112.2	8.1	12.12	102	4	2		GPTA	400	416	11.5	15.5	402	8	2
