*Product advantages:
High temperature resistance, simple structure, reliable sealing, no lubrication, spherical sealing structure, automatic centering, automatic
compensation, can be applied to the speed is not high, coaxiality is not good equipment.
*Range of adaptation:
Maximum speed: 100RPM
Maximum temperature: 220℃
Maximum pressure: 1.8mpa
*Applicable medium:
Saturated steam, superheated steam, superheated water
Structure ———————————————————————————————–
QS-G Details ———————————————————————————————-
| Size(mm) | Type | A | B | C | E | F1 | F2 | H | I1 | I2 | J |
| 20 | QS-G20-8 | RC3/4 | G1/4 | RC3/4 | 96 | 48 | 30 | 58 | 12 | – | 30 |
| 25 | QS-G25-10 | R1 | G3/4 | RC3/4 | 75 | 35 | 40 | 54 | – | 11 | 25 |
| 32 | QS-G32-15 | RC1-1/4 | G1/3 | RC1 | 120 | 63 | 38 | 70 | -　 | 14 | 34 |
| 40 | QS-G40-20 | RC1-1/2 | G3/4 | RC1-1/4 | 130 | 70 | 43 | 78 | – | 16 | 32 |
| 50 | QS-G50-25 | RC2 | G1 | RC1-1/2 | 160 | 85 | 51 | 95 | 18 | 　 | 40 |
| 　 | 　 | 　 | 　 | 　 | 　 | 　 | 　 | 　 | 　 | ||
| Size(mm) | Type | K | L | L1 | L2 | L4 | L5 | L7 | M1 | M2 | N |
| 20 | QS-G20-8 | 35 | 199 | 180 | 166 | 117 | 39 | 20 | 80 | 66 | 18 |
| 25 | QS-G25-10 | 35 | 239 | 225 | 215 | 155 | 48 | 22 | 105 | 93 | 25 |
| 32 | QS-G32-15 | 47 | 256 | 235 | 219 | 155 | 59 | 25 | 112 | 95 | 30 |
| 40 | QS-G40-20 | 45 | 298 | 273 | 254 | 187 | 69 | 30 | 133 | 117 | 38 |
| 50 | QS-G50-25 | 36 | 318 | 291 | 270 | 186 | 64 | 32 | 124 | 104 | 48 |

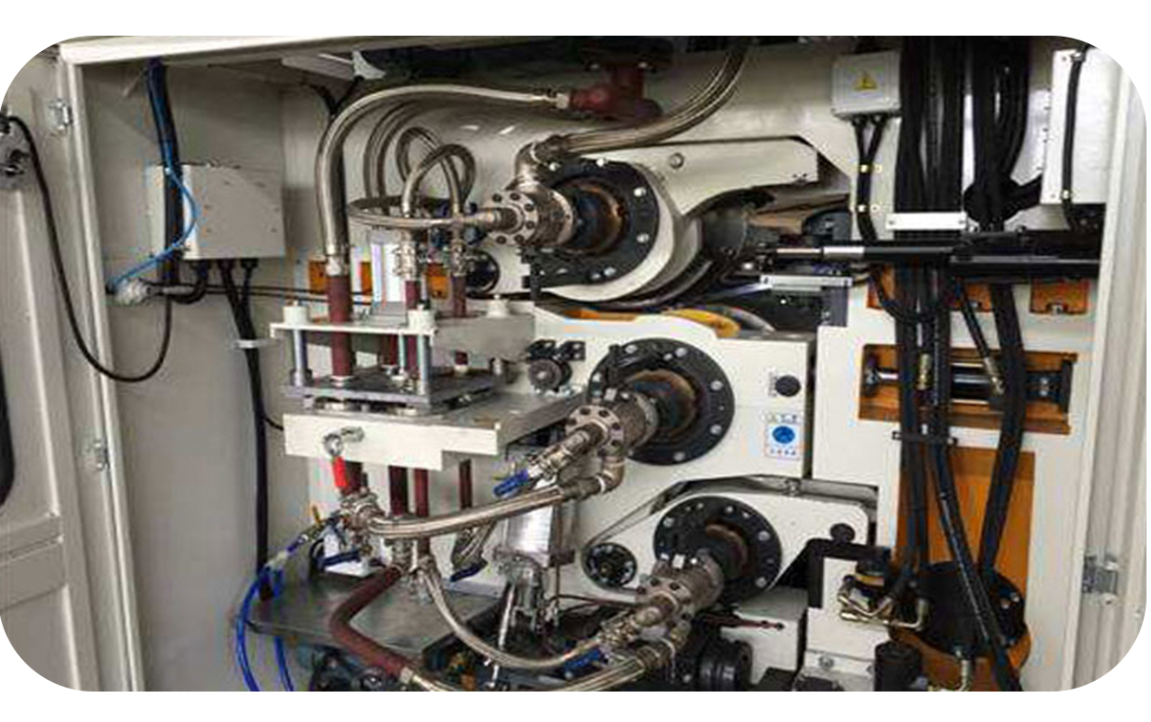

Application Case —————————————————————————————
