*Product advantages:
High temperature resistance, simple structure, reliable sealing, no lubrication, spherical sealing structure, automatic centering, automatic
compensation, can be applied to the speed is not high, coaxiality is not good equipment.
*Range of adaptation:
Maximum speed: 100RPM
Maximum temperature: 220℃
Maximum pressure: 1.8mpa
*Applicable medium:
Saturated steam, superheated steam, superheated water
Structure ———————————————————————————————-
QS-G Details ——————————————————————————————-
| Size(mm) | Type | A | B | C | D | E | F1 | F2 | H1 | H2 |
| 65 | QS-G65-32 | R2-1/2 | G1-1/4 | RC2 | RC1-1/4 | 190 | 85 | 62 | 220 | 270 |
| 80 | QS-G80-40 | R3 | G1-1/2 | RC2-1/2 | RC2 | 230 | 110 | 72 | 300 | 355 |
| 100 | QS-G100-65 | RC4 | G1-1/1 | RC2-1/2 | RC2-1/2 | 261 | 120 | 90 | 300 | 354 |
| Size(mm) | Type | I | K | L | L1 | L2 | L4 | L5 | L7 | N |
| 65 | QS-G65-32 | 20 | 40 | 402 | 376 | 354 | 195 | 80 | 40 | 64 |
| 80 | QS-G80-40 | 26 | 40 | 476 | 441 | 441 | 220 | 85 | 45 | 75 |
| 100 | QS-G100-65 | 26 | 30 | 510 | 467 | 429 | 265 | 87 | 45 | 98 |

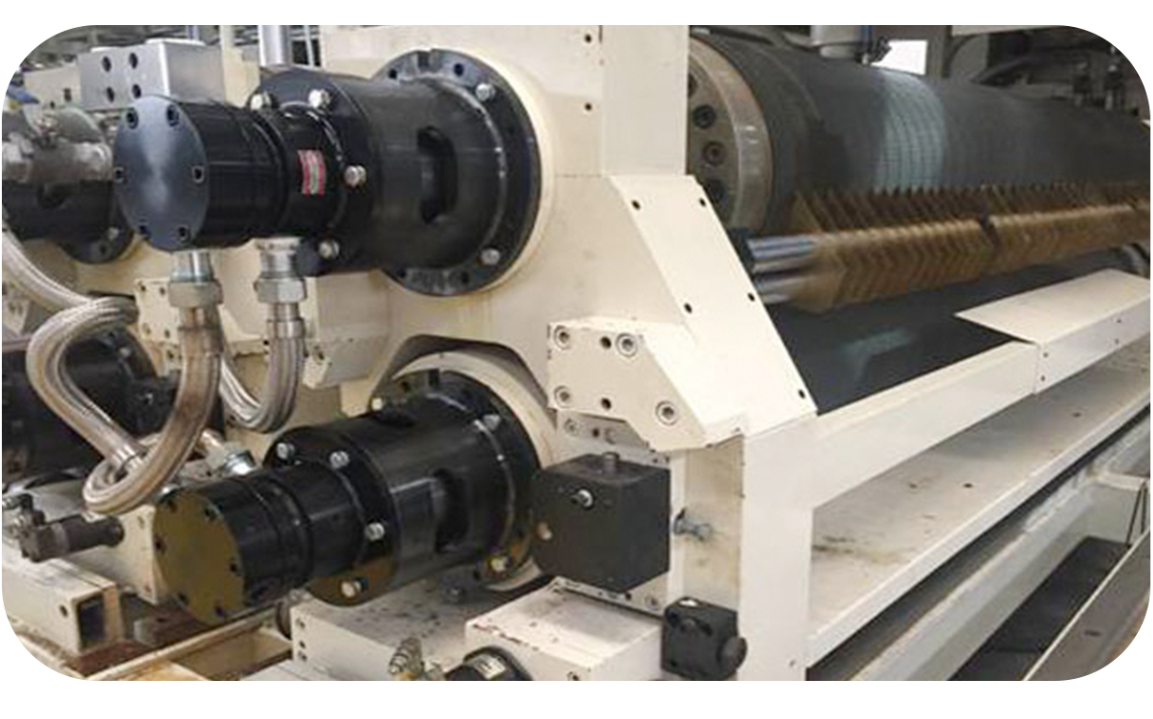

Application Case ——————————————————————————–
