*Product advantages:
High temperature resistance, simple structure, reliable sealing, no lubrication, spherical sealing structure, automatic centering, automatic
compensation, can be applied to the speed is not high, coaxiality is not good equipment.
*Range of adaptation:
Maximum speed: 100RPM
Maximum temperature: 220℃
Maximum pressure: 1.8mpa
*Applicable medium:
Saturated steam, superheated steam, superheated water
Structure —————————————————————————————————
QS-GF Details ———————————————————————————————–
| Size(mm) | Type | B | C | D | E | F1 | F2 | H | I1 | I2 | J | K | L | L1 |
| 20 | QS-GF20 | G1/4 | RC3/4 | RC1/2 | 96 | 48 | 30 | 48 | 12 | 12 | 25 | 35 | 210 | 195 |
| 25 | QS-GF25 | G3/8 | R3/4 | RC1/2 | 75 | 50 | 40 | 55 | 12 | 12 | 26 | 35 | 240 | 225 |
| 32 | QS-GF32 | G1/2 | RC1 | RC1/2 | 120 | 63 | 38 | 70 | 14 | 14 | 26 | 47 | 254 | 239 |
| 40 | QS-GF40 | G3/4 | RC1-1/4 | RC3/4 | 130 | 70 | 43 | 78 | 16 | 16 | 32 | 45 | 291 | 273 |
| 50 | QS-GF50 | G1 | RC1-1/2 | RC1 | 160 | 80 | 51 | 80 | 18 | 18 | 35 | 36 | 315 | 295 |
| Size(mm) | Type | L2 | L4 | L5 | M1 | M2 | N | O | P | Q | R | S | T | U |
| 20 | QS-GF20 | 171 | 133 | 55 | 104 | - | 18 | 27 | 75 | 105 | 16 | 8 | 4 | 14 |
| 25 | QS-GF25 | 215 | 165 | 47 | – | 95 | 25 | 33.5 | 85 | 115 | 16 | 8 | 4 | 14 |
| 32 | QS-GF32 | 223 | 156 | 62 | – | 98 | 30 | 42 | 100 | 140 | 18 | 12 | 4 | 18 |
| 40 | QS-GF40 | 254 | 187 | 69 | – | 125 | 38 | 48 | 110 | 150 | 18 | 12 | 4 | 18 |
| 50 | QS-GF50 | 274 | 199 | 70 | 138 | 48 | 60 | 125 | 165 | 20 | 15 | 4 | 18 |

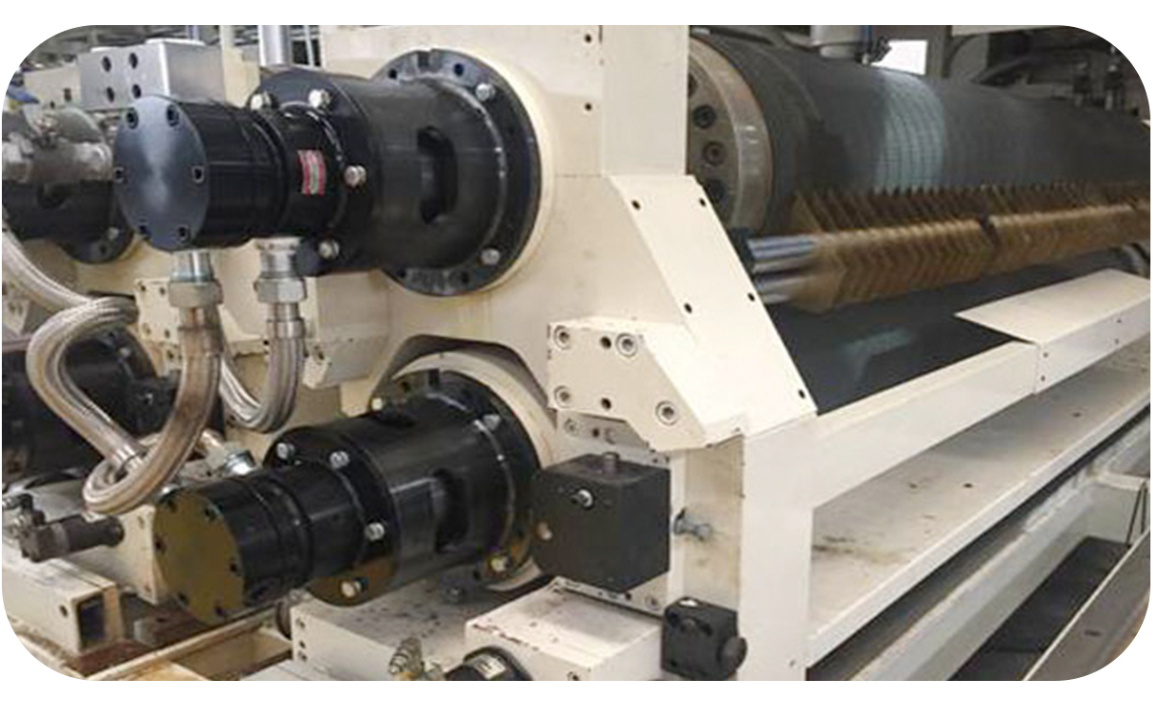

Application Case —————————————————————————–
