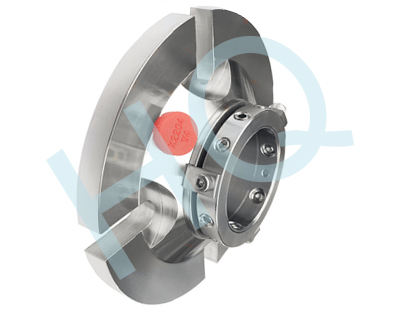

248.HQCS-A56(CSS)

Categories: AES Replacements, Brands, Cartridge Seals, Single Cartridge Seals, Structures

Type：	Single Cartridge Seal
Replacement：	AES CSS
Temperature：	-30℃ to +205℃
Pressure：	≤2.1Mpa
Speed：	≤25m/s
Material：	B,A,Q1,Q2,U2,E,V,K,F,G,M

Product descripton

d (mm)	D1			D2	D3	D	W		M	L1	L2	L3
d (mm)	min	mint	max	D2	D3	D	min	max	max	L1	L2	L3
90	114.3	115.8	127	215.9	150.8	127	171.5	195.2	20	49.2	31.8	19.6
95	117.5	119	130.2	215.9	150.8	127	171.5	195.2	20	49.2	31.8	19.6
100	123.9	125.4	139.7	228.6	168.3	136.5	188.9	207.9	20	49.2	31.8	19.6
105	130.1	131.6	149.2	228.6	168.3	136.5	159	208	20	49.2	31.8	19.6
110	136.5	138	158.8	241.3	177.8	146.1	198.4	220.6	20	49.2	31.8	19.6
115	142.9	144.4	168.3	254	186.6	155.6	211.1	230.2	22	49.2	31.8	19.6
120	142.9	144.4	168.3	254	186.6	155.6	211.1	230.2	22	49.2	31.8	19.6

d (inch)	D1			D2	D3	D4	W		M	L1	L2	L3
d (inch)	min	mint	max	D2	D3	D4	min	max	max	L1	L2	L3
3.625	4.500	4.560	5.000	8.5	5.937	5.000	6.750	7.687	42433	1.937	1.25	0.769
3.750	4.625	4.685	5.125	8.5	5.937	5.000	6.750	7.687	42433	1.937	1.25	0.769
3.875	4.750	4.810	5.250	8.5	5.937	5.000	6.750	7.687	42433	1.937	1.25	0.769
4.000	4.875	4.935	5.500	9.0	6.625	5.375	7.437	8.187	42433	1.937	1.25	0.769
4.125	5.125	5.185	5.875	9.0	6.625	5.375	7.437	8.187	42433	1.937	1.25	0.769
4.250	5.125	5.185	5.875	9.0	6.625	5.375	7.437	8.187	42433	1.937	1.25	0.769
4.375	5.375	5.435	6.250	9.5	7.000	5.750	7.812	8.687	42433	1.937	1.25	0.769
4.500	5.375	5.435	6.250	9.5	7.000	5.750	7.812	8.687	42433	1.937	1.25	0.769
4.625	5.625	5.685	6.625	10.0	7.345	6.125	8.312	9.062	42559	1.937	1.25	0.769
4.750	5.625	5.685	6.625	10.0	7.345	6.125	8.312	9.062	42559	1.937	1.25	0.769
