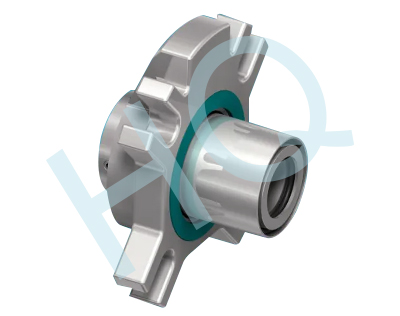

271.HQCS-J21(4610)

Categories: Brands, Cartridge Seals, Crane Replacements, Single Cartridge Seals, Structures

Type：	Single Cartridge Seal
Replacement：	Crane 4610
Temperature：	-30℃ to +205℃
Pressure：	≤2.8Mpa
Speed：	≤25m/s
Material：	Q1,Q2,U2,T,V,M1,F,G,M

Product descripton

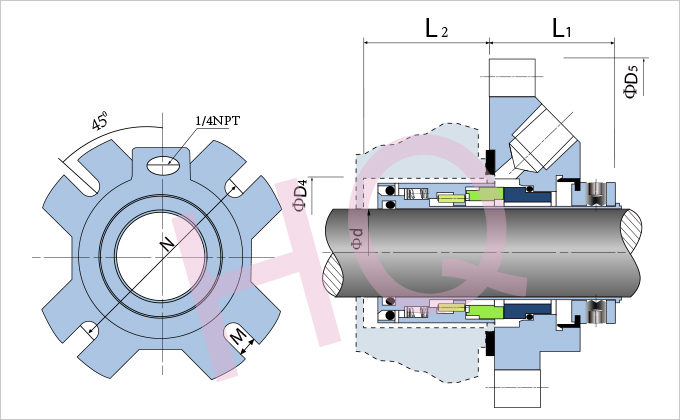

d (mm)	D4		D5	L2	L1	N		M
d (mm)	Min	Max	D5	Min	L1	Min	Max	M
24	40.00	49.2	104.8	30	34.5	66.7	95.3	11.1
25	41.00	49.2	104.8	30	34.5	66.7	95.3	11.1
28	44.00	52.4	108.0	30	34.5	69.9	98.4	11.1
30	46.00	55.6	111.0	30	34.5	73.0	101.6	11.1
32	47.60	55.6	111.0	30	34.5	73.0	101.6	11.1
33	49.00	58.7	114.3	30	34.5	73.0	101.6	11.1
35	50.80	58.7	114.3	30	34.5	77.8	104.8	11.1
38	57.15	63.5	127.0	31	35.5	87.3	114.3	14.3
40	60.00	63.5	127.0	31	35.5	87.3	114.3	14.3
43	63.00	66.7	133.4	31	35.5	90.5	120.7	14.3
45	63.50	66.7	133.4	31	35.5	90.5	120.7	14.3
48	66.70	76.2	139.7	31	35.5	98.4	127.0	14.3
50	69.80	76.2	139.7	31	35.5	98.4	127.0	14.3
53	73.00	84.1	146.0	31	35.5	111.1	130.2	17.5
55	73.00	84.1	146.0	31	35.5	111.1	130.2	17.5
58	79.40	90.5	152.4	31	35.5	117.5	136.5	17.5
60	79.40	90.5	152.4	31	35.5	117.5	136.5	17.5
63	82.60	98.4	158.8	34	35.5	123.8	142.9	17.5
65	88.90	98.4	158.8	34	36.0	123.8	142.9	17.5
70	95.00	98.4	158.8	34	36.0	123.8	142.9	17.5

d (inch)	D4		D5	L2	L1	N		M
d (inch)	Min	Max	D5	Min	L1	Min	Max	M
1.000	1.615	1.940	4.125	1.18	1.36	2.62	3.75	0.437
1.125	1.730	2.060	4.250	1.18	1.36	2.75	3.87	0.437
1.250	1.875	2.190	4.370	1.18	1.36	2.87	4.00	0.437
1.375	2.000	2.310	4.500	1.18	1.36	3.06	4.12	0.437
1.500	2.250	2.500	5.000	1.22	1.40	3.43	4.50	0.563
1.625	2.360	2.500	5.000	1.22	1.40	3.43	4.50	0.563
1.750	2.500	2.625	5.250	1.22	1.40	3.56	4.75	0.563
1.875	2.625	3.000	5.500	1.22	1.40	3.87	5.00	0.563
2.000	2.750	3.000	5.500	1.22	1.40	3.87	5.00	0.563
2.125	2.875	3.310	5.750	1.22	1.40	4.37	5.12	0.563
2.250	3.000	3.310	5.750	1.22	1.40	4.37	5.12	0.689
2.375	3.130	3.560	6.000	1.22	1.40	4.62	5.37	0.689
2.500	3.250	3.875	6.250	1.42	1.40	4.87	5.62	0.689
2.625	3.500	3.875	6.250	1.34	1.420	4.87	5.62	0.689
2.750	3.740	3.875	6.250	1.34	1.420	4.87	5.62	0.689
