277.HQCS-J27(48LP/48HP/48MP)

Categories: Brands, Brands, Cartridge Seals, Crane Replacement, Crane Replacements, O.E.M.Seals

Type：	Single Cartridge Seal
Replacement：	Crane 48LP/48HP
Temperature：	-40 to +200℃
Pressure：	≤20Mpa
Speed：	≤15m/s
Material：	Q1,Q2,U2,T,V,M1,F,G,M

Product descripton

48LP

48HP

48MP

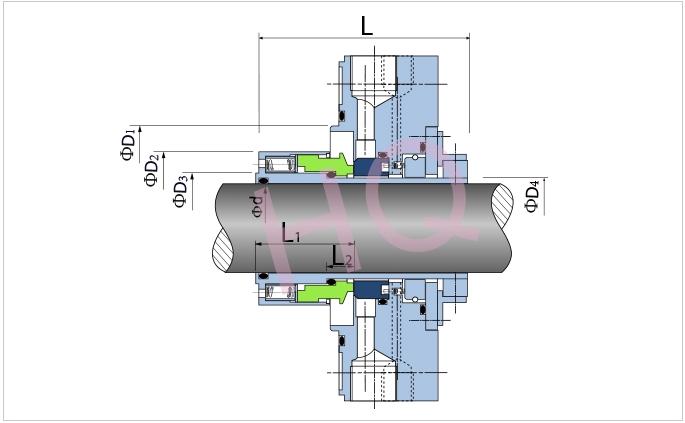

d(inch)	D1 (min)	D2	D3	D4	L	L1	L2
1.000	2.500	2.125	1.500	1.250	3.687	1.437	0.343
1.125	2.750	2.375	1.625	1.375	4.000	1.750	0.437
1.250	2.875	2.500	1.750	1.500	4.000	1.750	0.437
1.375	3.000	2.625	1.875	1.625	4.062	1.750	0.437
1.500	3.125	2.750	2.00	1.750	4.062	1.750	0.437
1.625	3.375	3.000	2.125	1.875	4.375	2.062	0.500
1.750	3.500	3.125	2.250	2.000	4.375	2.062	0.500
1.875	3.625	3.250	2.375	2.125	4.437	2.062	0.500
2.000	3.750	3.375	2.500	2.250	4.437	2.062	0.500
2.125	3.875	3.500	2.625	2.375	4.437	2.062	0.500
2.250	4.000	3.625	2.750	2.500	4.437	2.062	0.500
2.375	4.125	3.750	2.875	2.625	4.500	2.062	0.500
2.500	4.187	3.812	3.000	2.750	4.500	2.062	0.500
2.625	4.312	3.937	3.125	2.875	4.500	2.062	0.562
2.750	4.500	4.125	3.250	3.000	4.500	2.062	0.562
2.875	4.625	4.250	3.375	3.125	4.656	2.062	0.562
3.000	4.750	4.375	3.500	3.250	4.656	2.062	0.562
3.125	4.875	4.500	3.625	3.375	4.656	2.062	0.562
3.250	5.000	4.625	3.750	3.500	4.656	2.062	0.562
3.375	5.125	4.750	3.875	3.625	4.656	2.062	0.562
3.500	5.250	4.875	4.000	3.750	4.656	2.062	0.562
3.625	5.500	5.125	4.125	3.875	4.656	2.062	0.562
3.750	5.625	5.250	4.250	4.000	4.656	2.062	0.562
3.875	5.750	5.375	4.375	4.125	4.656	2.062	0.562
4.000	5.875	5.500	4.500	4.250	4.656	2.062	0.562
