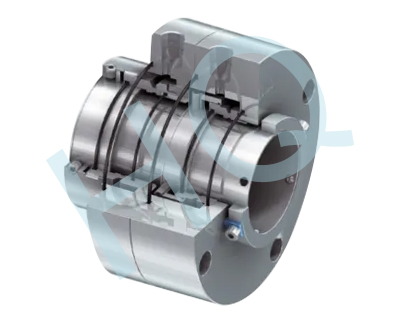

288.HQCS-J39(2648)

Categories: Brands, Cartridge Seals, Crane Replacements, Double Cartridge Seals, Structures

Type：	Double Mechanical Seal
Replacement：	Crane 2648
Temperature：	-40 to +230℃
Pressure：	≤6Mpa
Speed：	≤25m/s
Material：	Q1,Q2,Graphite,V,M5,M6,G

Product descripton

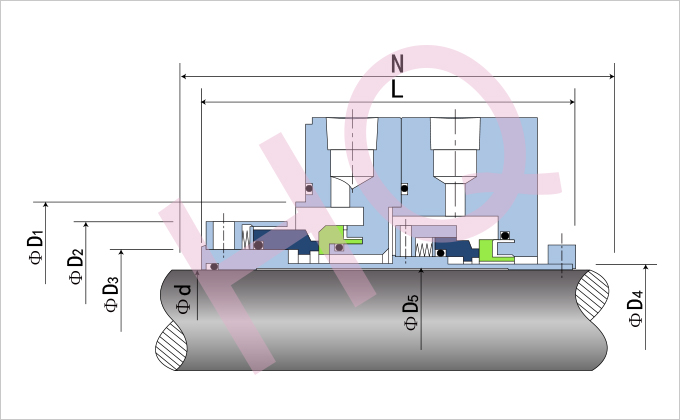

d (inch)	D1	D2	D3	D4	D5	L	N
1.000	2.875	2.500	1.750	1.250	1.500	5.312	5.75
1.125	3.000	2.625	1.875	1.375	1.625	5.312	5.75
1.250	3.125	2.750	2.000	1.500	1.750	5.312	5.75
1.375	3.375	3.000	2.125	1.625	1.875	5.625	5.75
1.500	3.500	3.125	2.250	1.750	2.000	5.625	5.75
1.625	3.625	3.250	2.375	1.875	2.125	5.750	5.75
1.750	3.750	3.375	2.500	2.000	2.250	5.750	5.75
1.875	3.875	3.500	2.625	2.125	2.375	5.750	5.75
2.000	4.000	3.625	2.750	2.250	2.500	5.937	6.50
2.125	4.125	3.750	2.875	2.375	2.625	5.937	6.50
2.250	4.187	3.812	3.000	2.500	2.750	5.937	6.50
2.375	4.312	3.937	3.125	2.625	2.875	6.218	6.50
2.500	4.500	4.125	3.250	2.750	3.000	6.218	6.50
2.625	4.625	4.250	3.375	2.875	3.125	6.343	6.50
2.750	4.750	4.375	3.500	3.000	3.250	6.343	6.50
2.875	4.875	4.500	3.625	3.125	3.375	6.343	6.50
3.000	5.000	4.625	3.750	3.250	3.500	6.343	6.50
3.125	5.125	4.750	3.875	3.375	3.625	6.343	7.00
3.250	5.250	4.875	4.000	3.500	3.750	6.343	7.00
3.375	5.500	5.125	4.125	3.625	3.875	6.343	7.00
3.500	5.625	5.250	4.250	3.750	4.000	6.343	7.00
3.625	5.750	5.375	4.375	3.875	4.125	6.593	7.00
3.750	5.875	5.500	4.500	4.000	4.250	6.593	7.00
3.875	6.000	5.625	4.625	4.125	4.375	6.593	7.00
4.000	6.125	5.750	4.750	4.250	4.500	6.593	7.00
4.125	6.250	5.875	4.875	4.375	4.625	6.593	7.00
4.250	6.375	6.000	5.000	4.500	4.750	6.593	7.00
