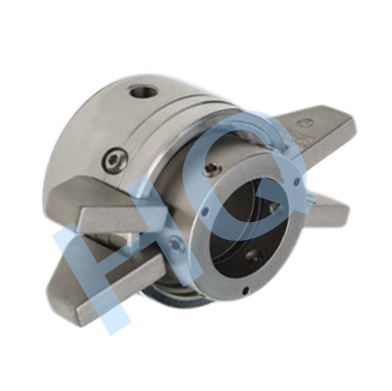

310.HQCS-C13(HVS)

Categories: Brands, Cartridge Seals, Chesterton Replacements, Single Cartridge Seals, Structures

Type：	Single Cartridge Seal
Replacement：	Chesterton HVS
Temperature：	-40 to +204℃
Pressure：	≤4.0Mpa
Speed：	≤20m/s
Material：	Q1,Q2,A,B,U1,U2,P,E,V,T,F,G,T2,M5

Product descripton

d (mm)	D2	D1		D3	D4(min)				L1	L2	L3	L4
d (mm)	D2	min	max	max	8mm	10mm	12mm	20mm	L1	min	L3	L4
25	59.9	37.7	40.6	120.8	72.8	74.8	76.8	*	58	3.6	52.2	0.18
28	63.7	40.8	49.8	124.7	76.4	78.4	80.4	*	58	3.6	52.2	0.18
30	63.7	40.8	49.8	124.7	76.4	78.4	80.4	*	58	3.6	52.2	0.18
32	67.1	44.2	54.4	128.1	79.8	81.8	83.8	87.8	63	4.9	52.2	0.18
35	70.0	40.8	56.4	131.0	82.7	84.7	86.7	90.7	63	4.9	52.2	0.18
40	71.8	52.2	57.9	125.5	87.8	89.8	91.8	95.8	63	4.9	52.2	0.18
45	76.8	57.2	62.9	130.5	92.8	94.8	96.8	100.8	63	4.9	52.2	0.18
50	82.6	63.1	66.8	147.2	98.6	100.6	102.6	106.6	63	4.9	52.2	0.18
53	85.8	66.2	84.1	150.1	101.8	103.8	105.8	109.8	63	4.9	52.2	0.18
55	89.0	69.4	75.4	156.9	104.9	106.9	135.1	137.1	63	4.9	52.2	0.18
60	110.4	74.1	93.9	172.6	124.4	126.4	128.4	132.4	63	4.9	54.1	0.18
65	105.6	77.2	91.9	176.4	127.5	129.5	131.5	135.5	63	4.9	53.5	0.18
70	110.4	81.9	96.8	181.2	*	*	136.4	140.4	63	4.9	53.5	0.18
75	131.0	89.2	115.7	188.4	*	*	143.5	147.5	63	4.9	52.4	0.00
80	136.0	94.2	120.9	193.4	*	*	148.5	152.5	63	4.9	52.4	0.00
85	143.3	100.8	113.8	215	*	*	156.8	160.8	63	4.9	52.4	0.00
100	157.6	115.8	141.1	214.9	*	*	170.1	174.1	63	4.9	52.4	0.00

d (inch)	D1	D2		D3	D4(min)					L1	L2	L3	L4
d (inch)	D1	min	max	max	5/16"	7/16"	1/2"	5/8"	3/4"	L1	min	L3	L4
0.750	2.133	1.21	1.48	4.54	2.641	2.766	*	*	*	2.186	0.3	2.06	0.15
1.125	2.510	1.58	1.82	4.92	3.016	3.141	*	*	*	2.186	0.3	2.06	0.15
1.375	2.758	1.83	2.06	5.17	3.266	3.391	*	*	*	2.405	0.3	2.06	0.15
1.437	2.690	1.89	2.10	5.23	3.328	3.453	*	*	*	2.405	0.3	2.06	0.15
1.500	2.753	1.96	2.11	5.29	3.391	3.516	*	*	*	2.405	0.3	2.06	0.15
1.625	2.878	2.08	2.23	5.42	3.516	3.641	3.703	*	*	2.405	0.3	2.06	0.15
1.750	3.003	2.21	2.36	5.54	3.641	3.766	3.828	*	*	2.405	0.3	2.06	0.15
1.812	3.065	2.27	2.29	5.60	3.703	3.828	3.890	*	*	2.405	0.3	2.06	0.15
1.875	3.128	2.33	2.45	5.67	3.766	3.891	3.953	*	*	2.405	0.3	2.06	0.15
2.125	3.378	2.58	2.80	5.92	*	*	4.203	4.328	4.453	2.405	0.3	2.06	0.15
2.250	3.503	2.71	2.81	6.04	*	*	4.328	4.453	4.578	2.405	0.3	2.06	0.15
2.437	4.034	2.89	3.23	6.81	*	*	5.095	5.220	5.345	2.465	0.3	2.06	0.15
2.500	4.097	2.96	3.41	6.87	*	*	5.158	5.283	5.408	2.406	0.3	2.06	0.15
2.750	4.347	3.21	3.65	7.12	*	*	5.408	5.533	5.658	2.406	0.3	2.06	0.15
2.875	5.080	3.41	3.98	7.93	*	*	5.611	5.736	5.861	2.406	0.3	2.06	0.00
2.953	5.160	3.49	3.98	8.01	*	*	5.689	5.814	5.939	2.406	0.3	2.06	0.00
3.437	5.640	3.97	4.48	8.50	*	*	6.173	6.298	6.423	2.406	0.3	2.06	0.00
3.500	5.710	4.03	4.48	8.56	*	*	6.236	6.361	6.486	2.406	0.3	2.06	0.00
4.000	6.210	4.53	4.98	9.06	*	*	6.736	6.861	6.986	2.406	0.3	2.06	0.00
