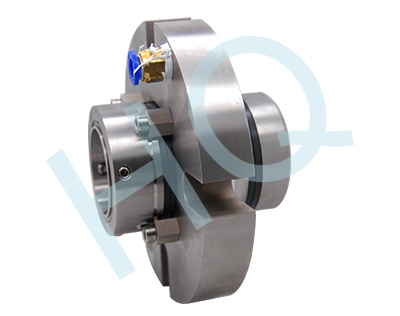

323.HQCS-DP323

Categories: Brands, Cartridge Seals, DEPAC Replacements

Type：	Double Cartridge Seal
Replacement：	DEPAC 323
Temperature：	Elastemer Dependent
Pressure：	≤2.8MPa
Speed：	≤35m/s
Material：	Q1,Q2,U2,T,V,M1,F,G,M

Product descripton

d (mm)	D1	D2	D3	D4	L1	L2	L3	M
24	49.7	67	52	115	50	35	24	12.5
25	49.7	67	52	115	50	35	24	12.5
28	52.7	67	55	115	50	35	24	12.5
30	54.7	67	57	115	50	35	24	12.5
32	57.5	75	60	130	50	35	24	14.7
33	57.7	75	60	130	50	35	24	14.7
35	59.7	75	62	130	50	35	24	14.7
38	62.7	82	65	140	50	35	24	14.7
40	64.7	82	67	140	50	35	24	14.7
43	67.7	82	70	140	50	35	24	14.7
45	69.7	82	72	140	50	35	24	14.7
48	72.7	92	75	150	50	35	24	17.5
50	74.7	92	77	150	50	35	24	17.5
53	77.7	92	80	150	50	35	24	17.5
55	79.7	100	82	160	50	35	24	17.5
60	84.7	100	87	160	50	35	24	17.5
65	89.7	112	92	180	50	35	24	17.5
70	94.7	112	97	180	50	35	24	17.5
75	107.8	130	108	190	54	39	25	17.5
80	112.8	135	113	220	54	39	25	17.5
85	117.8	140	118	220	54	39	25	21.5
90	122.8	145	123	220	54	39	25	21.5
95	127.8	150	128	220	54	39	25	21.5
100	132.8	155	133	240	54	39	25	21.5

d (inch)	D1	D2	D3	D4	L1	L2	L3	M
d (inch)	D1	D2	D3	D4	L1	L2	L3	M
1.000	1.957	2.638	2.047	4.528	1.969	1.378	0.945	0.492
1.125	2.075	2.638	2.165	4.528	1.969	1.378	0.945	0.492
1.250	2.232	2.953	2.323	5.118	1.969	1.378	0.945	0.579
1.375	2.350	2.953	2.441	5.118	1.969	1.378	0.945	0.579
1.500	2.469	3.228	2.559	5.512	1.969	1.378	0.945	0.579
1.625	2.626	3.228	2.717	5.512	1.969	1.378	0.945	0.579
1.750	2.744	3.228	2.835	5.512	1.969	1.378	0.945	0.579
1.875	2.862	3.622	2.953	5.906	1.969	1.378	0.945	0.689
2.000	2.941	3.622	3.031	5.906	1.969	1.378	0.945	0.689
2.125	3.059	3.622	3.150	5.906	1.969	1.378	0.945	0.689
2.250	3.217	3.937	3.307	6.299	1.969	1.378	0.945	0.689
2.375	3.335	3.937	3.425	6.299	1.969	1.378	0.945	0.689
2.500	3.453	4.409	3.543	7.087	1.969	1.378	0.945	0.689
2.625	3.610	4.409	3.701	7.087	1.969	1.378	0.945	0.689
2.750	3.728	4.409	3.819	7.087	1.969	1.378	0.945	0.689
2.875	4.165	5.039	4.173	7.48	1.969	1.378	0.945	0.689
3.000	4.244	5.118	4.252	7.48	2.126	1.535	0.984	0.689
3.125	4.441	5.315	4.449	8.661	2.126	1.535	0.984	0.689
3.250	4.559	5.433	4.567	8.661	2.126	1.535	0.984	0.846
3.375	4.638	5.512	4.646	8.661	2.126	1.535	0.984	0.846
3.500	4.835	5.709	4.843	8.661	2.126	1.535	0.984	0.846
3.625	4.913	5.787	4.921	8.661	2.126	1.535	0.984	0.846
3.750	5.031	5.906	5.039	8.661	2.126	1.535	0.984	0.846
3.875	5.228	6.102	5.236	9.449	2.126	1.535	0.984	0.846
4.000	5.228	6.102	5.236	9.449	2.126	1.535	0.984	0.846
