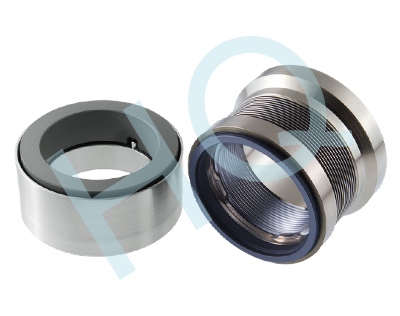

377.HQ-N12B(YE400)

Categories: Burgmann Replacements, Metal Bellow Seals

Type：	Metal Bellow Seal
Replacement：	Bergmann YE400
Temperature：	+240℃ to +450℃
Pressure：	≤20Mpa
Speed：	≤35m/s
Material：	B,A1,Q1,Q2,U2,P,E,N,V,F,G,Alfa

Product descripton

Size code	d (mm)	D1	D2	d0	D3	L1	L2	L3	L4
X14	18.0	47	42	21	44	36	31	6.3	15
X16	21.0	50	47	26	47	38	31	6.3	17
X18	24.0	53	50	29	50	38	31	6.3	17
X20	27.5	56	53	32	53	38	31	6.3	17
X22	31.0	60	57	36	57	38	31	6.3	17
X24	33.0	64	60	39	60	41	31	6.3	20
X26	36.0	67	63	42	63	41	31	6.3	20
X28	39.0	70	66	45	66	41	31	6.3	20
X30	42.0	73	69	48	69	41	31	6.3	20
X32	45.0	76	72	51	72	41	31	6.3	20
X34	45.0	80	75	54	76	43	31	6.3	22
X36	50.0	83	79	58	79	43	31	6.3	22
X38	53.0	86	82	61	82	43	31	6.3	22
X40	55.0	89	85	64	85	51	31	6.3	30
X42	58.5	92	89	67	88	51	31	6.3	30
X44	62.5	96	92	71	92	51	31	6.3	30
X46	64.0	99	96	74	95	55	31	6.3	34
X48	67.0	102	99	77	98	55	31	6.3	34
X50	70.0	105	102	81	101	55	31	6.3	34
X52	73.0	108	105	84	104	55	31	6.3	34
X54	75.5	111	109	87	107	55	31	6.3	34
X56	78.5	116	113	90	111	58	31	6.3	37
X58	82.0	120	116	93	114	58	31	6.3	37
X60	85.0	122	119	96	117	58	31	6.3	37
X62	88.0	125	122	99	120	58	31	6.3	37
X64	91.0	128	125	103	123	58	31	6.3	37
X70	100.0	142	138	111	134	60	31	6.3	39
X78	110.0	152	147	116	145	60	41	7.5	39
X90	129.0	173	168	137	166	63	41	7.5	42
