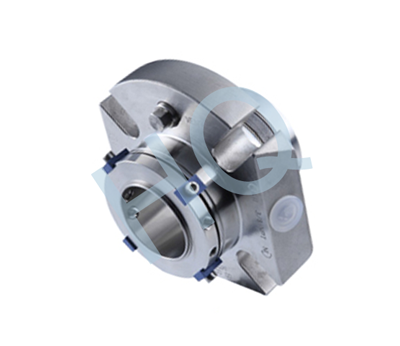

385.HQMB-B11(Mtex-D)

Categories: Burgmann Replacements, Metal Bellow Seals

Type：	Metal Bellow Seal
Replacement：	Burgmann Mtex Double
Temperature：	-40℃ to +220℃
Pressure：	≤2.5Mpa
Speed：	≤20m/s
Material：	A,Q1,U2,V,E,K,G,M6,M

Product descripton

d (mm)	D1 (min)	D1 (max)	D2	Da	Dm	L	L1	L2	L3	M
25	47.0	51.0	45.0	105	62.0	87.0	53.4	33.6	25.4	13.2
30	52.0	56.0	49.4	105	67.0	86.5	53.4	33.1	25.4	13.2
32	54.5	57.0	52.3	108	70.0	86.5	53.4	33.1	25.4	13.2
33	54.5	57.0	52.3	108	70.0	86.5	53.4	33.1	25.4	13.2
35	58.0	61.5	54.8	113	72.0	86.5	53.4	33.1	25.4	13.2
38	60.0	66.0	57.5	123	75.0	86.5	53.4	33.1	25.4	14
40	62.0	68.0	58.8	123	77.0	86.3	53.4	32.9	25.4	14.2
43	64.5	70.5	61.9	133	80.0	86.5	53.4	33.1	25.4	14.2
45	68.5	73.0	65.0	138	82.0	86.5	53.4	33.1	25.4	14.2
48	71.0	75.0	68.4	138	85.0	86.8	53.4	33.4	25.4	14.2
50	73.0	78.0	70.0	148	87.0	87.2	53.4	33.8	25.4	14.2
53	75.0	87.0	71.9	148	97.0	87.4	53.4	34.0	25.4	18.0
55	77.0	83.0	74.6	148	92.0	87.0	53.4	33.6	25.4	18.0
60	87.0	91.0	83.9	157	102.0	88.2	53.4	34.8	25.4	18.0
65	90.0	98.5	87.5	163	109.3	88.1	53.4	34.7	25.4	18.0
70	98.0	108.0	93.0	178	118.3	89.6	53.4	36.2	25.4	18.0
75	101.6	118.0	96.8	190	129.0	107.4	63.9	43.5	28.0	18.0
80	108.0	124.0	104.7	195	135.0	106.8	63.9	42.9	28.0	18.0
