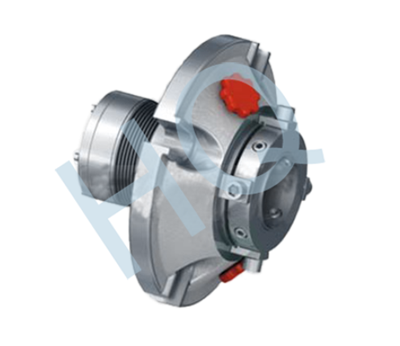

388.HQMB-A50(BQFD)

Categories: ,

Type： Metal Bellow Seal
Replacement： AES BQFD
Temperature： -40℃ to +204℃
Pressure： ≤2.0Mpa
Speed： ≤20m/s
Material： A,B,Q1,Q2,U1,U2,T,Graphite,V,G,F,M,T6
request a quote

Product descripton

d

(mm)

 D3 D2 D4 L3 D1(min) D1(max) W(min) W(max) M(max) L2 L1
24 104.8 54.0 49.2 13.2 41.0 49.0 67.0 90.5 12 38.9 40.5
25 104.8 54.0 49.2 13.2 41.0 49.0 67.0 90.5 12 38.9 40.5
28 108.0 57.2 52.4 13.2 44.0 52.3 70.3 93.6 12 38.9 40.5
30 111.0 60.4 55.6 13.2 46.0 55.5 73.5 96.8 12 38.9 40.5
32 111.0 60.4 55.6 13.2 48.0 55.5 73.5 96.8 12 38.9 40.5
33 111.0 60.4 55.6 13.2 49.0 55.5 73.5 96.8 12 38.9 40.5
35 111.0 63.5 58.8 13.2 51.0 57.5 76.6 96.8 12 38.9 40.5
38 127.0 71.5 65.0 16.4 57.2 60.4 85.7 114.3 12 42.9 44.5
40 127.0 71.5 65.0 16.4 58.0 60.4 85.7 114.3 12 42.9 44.5
43 139.7 81.0 71.4 16.4 61.0 69.9 95.3 127.0 12 42.9 44.5
45 139.7 81.0 71.4 16.4 63.5 69.9 95.3 127.0 12 42.9 44.5
48 139.7 81.0 71.4 16.4 66.7 73.0 95.3 127.0 12 42.9 44.5
50 152.4 90.5 77.8 16.4 68.0 76.2 104.8 139.7 12 44.5 44.5
53 152.4 90.5 77.8 16.4 71.0 76.2 104.8 139.7 12 44.5 44.5
55 165.1 96.8 84.1 16.4 74.0 82.5 114.3 149.2 16 44.5 44.5
58 165.1 96.8 84.1 16.4 76.2 82.6 114.3 149.2 16 44.5 44.5
60 165.1 96.8 84.1 16.4 79.4 85.7 114.3 149.2 16 44.5 44.5
63 177.8 109.5 96.8 19.6 85.8 92.1 127.0 160.3 16 51.6 47.7
65 177.8 109.5 96.8 19.6 88.9 95.3 127.0 160.3 16 51.6 47.7
68 177.8 109.5 96.8 19.6 92.1 98.4 127.0 160.3 16 51.6 47.7
70 177.8 109.5 96.8 19.6 92.1 98.4 127.0 160.3 16 54.6 47.7
75 190.5 125.4 108.0 19.6 98.5 108.0 142.9 173.0 16 54.6 47.7
80 190.5 125.4 108.0 19.6 101.6 111.1 142.9 173.0 16 54.6 47.7
85 203.2 135.0 117.5 19.6 108.0 117.5 155.6 182.5 20 54.6 47.7
90 215.9 150.8 127.0 19.6 114.3 127.0 171.5 195.2 20 54.6 47.7
95 215.9 150.8 127.0 19.6 117.5 130.2 171.5 195.2 20 54.6 47.7
100 228.6 168.3 136.0 19.6 123.9 139.7 188.9 207.9 20 54.6 47.7

d

(inch)

 D3 D2 D4 L3 D1(min) D1(max) W(min) W(max) M(max) L2 L1
1.000 4.125 2.125 1.937 0.519 1.625 1.937 2.687 3.562 0.500 1.531 1.59
1.125 4.25 2.250 2.063 0.519 1.750 2.062 2.812 3.687 0.500 1.531 1.59
1.250 4.375 2.375 2.187 0.519 1.875 2.187 2.937 3.812 0.500 1.531 1.59
1.375 4.375 2.500 2.312 0.519 2.000 2.250 3.062 3.812 0.500 1.531 1.59
1.500 5.000 2.812 2.562 0.644 2.250 2.375 3.375 4.437 0.500 1.687 1.752
1.625 5.000 2.812 2.562 0.644 2.375 2.500 3.375 4.437 0.500 1.687 1.752
1.750 5.500 3.187 2.812 0.644 2.500 2.750 3.750 4.937 0.500 1.687 1.752
1.875 5.500 3.187 2.812 0.644 2.625 2.875 3.750 4.937 0.500 1.687 1.752
2.000 6.000 3.562 3.063 0.644 2.750 3.000 4.125 5.437 0.500 1.750 1.752
2-AC 5.250 3.450 3.035 0.644 2.750 3.000 4.000 4.75 0.500 1.750 1.752
2.125 6.000 3.562 3.063 0.644 2.875 3.125 4.125 5.437 0.500 1.750 1.752
2.250 6.500 3.812 3.312 0.644 3.000 3.250 4.500 5.812 0.625 1.750 1.752
2.375 6.500 3.812 3.312 0.644 3.125 3.375 4.500 5.812 0.625 1.750 1.752
2.500 7.000 4.312 3.812 0.769 3.375 3.625 5.000 6.312 0.625 2.031 1.877
2.625 7.000 4.312 3.812 0.769 3.500 3.750 5.000 6.312 0.625 2.031 1.877
2.750 7.000 4.312 3.812 0.769 3.625 3.875 5.000 6.312 0.625 2.031 1.877
2.875 7.500 4.937 4.250 0.769 3.750 4.125 5.625 6.812 0.625 2.031 1.877
3.000 7.500 4.937 4.250 0.769 3.875 4.250 5.625 6.812 0.625 2.150 1.877
3.125 7.500 4.937 4.250 0.769 4.000 4.375 5.625 6.812 0.625 2.150 1.877
3.250 8.000 5.312 4.625 0.769 4.125 4.500 6.125 7.187 0.750 2.150 1.877
3.375 8.000 5.312 4.625 0.769 4.250 4.625 6.125 7.187 0.750 2.150 1.877
3.500 8.000 5.312 4.625 0.769 4.375 4.750 6.125 7.187 0.750 2.150 1.877
3.625 8.500 5.937 5.000 0.769 4.500 5.000 6.750 7.687 0.750 2.150 1.877
3.750 8.500 5.937 5.000 0.769 4.625 5.125 6.75 7.687 0.750 2.150 1.877
3.875 9.000 6.625 5.375 0.769 4.875 5.500 7.437 8.187 0.750 2.150 1.877
4.000 9.000 6.625 5.375 0.769 4.875 5.500 7.437 8.187 0.750 2.150 1.877
