393.HQMB-A54(BSAI)

Categories: AES Replacements, Metal Bellow Seals

Type：	Metal Bellow Seal
Replacement：	AES BSAI
Temperature：	-30℃ to +204℃
Pressure：	≤2.0Mpa
Speed：	≤20m/s
Material：	A,B,Q1,Q2,U1,U2,T,T6,V,G,F,M,M1

Product descripton

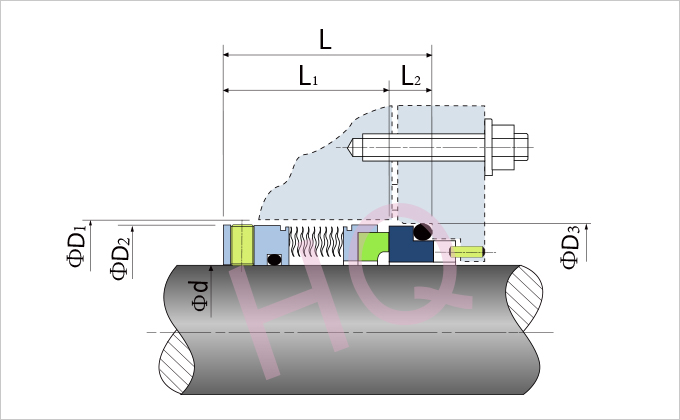

d (mm)	L	L1	L2	D1	D2	D3
24	40.0	29.9	10.1	40	38	39
25	40.0	29.9	10.1	41	39	40
28	42.5	32.4	10.1	44	42	43
30	42.5	32.4	10.1	46	44	45
32	42.5	32.4	10.1	48	46	48
33	42.5	32.4	10.1	49	47	48
35	42.5	32.4	10.1	51	49	50
38	45.0	33.9	11.1	58	54	56
40	45.0	33.9	11.1	60	56	58
43	45.0	33.9	11.1	63	59	61
45	45.0	33.9	11.1	65	61	63
48	45.0	33.9	11.1	68	64	66
50	47.5	34.4	13.1	70	66	70
53	47.5	34.4	13.1	73	69	73
55	47.5	34.4	13.1	75	71	75
58	52.5	38.9	13.6	83	78	78
60	52.5	38.9	13.6	85	80	80
63	52.5	38.9	13.6	88	83	83
65	52.5	38.9	13.6	90	85	85
68	52.5	38.9	15.1	93	88	90
70	60.0	44.9	15.1	95	90	92
75	60.0	44.9	15.1	104	99	97
80	60.0	44.2	15.8	109	104	105
85	60.0	44.2	15.8	114	109	110
90	65.0	49.2	15.8	119	114	115
95	65.0	49.2	15.8	124	119	120
100	65.0	49.2	15.8	129	124	125
