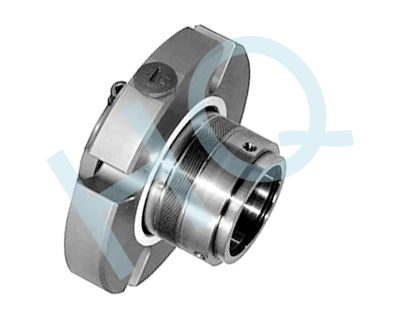

397.HQMB-AP03(S1WBC)

Categories: APEX Replacements, Metal Bellow Seals

Type：	Single Welded Bellow Cartridge Seal
Replacement：	APEX S1WBC
Temperature：	≤300℃
Pressure：	≤20.7 Bar
Speed：	≤12m/s
Material：	Q1,Q2,U2,T,V,M1,F,G,M

Product descripton

d(inch)	D1	D2(min)	D3	D4	D5	G	L1	L2	L3	M
1.000	1.687	1.750	1.771	2.106	4.000	2.224	1.383	1.460	0.063	0.551
1.125	1.694	1.750	1.909	2.283	4.125	2.421	1.445	1.460	0.063	0.551
1.250	1.937	2.000	2.037	2.362	4.250	2.500	1.570	1.460	0.063	0.551
1.375	1.944	2.000	2.145	2.539	4.250	2.696	1.570	1.460	0.063	0.551
1.500	2.187	2.250	2.368	2.736	5.000	2.815	1.570	1.460	0.063	0.551
1.625	2.311	2.375	2.46	2.854	4.500	2.972	1.570	1.460	0.063	0.551
1.750	2.437	2.500	2.578	2.992	5.000	3.062	1.633	1.460	0.063	0.551
1.875	2.561	2.625	2.755	3.11	5.250	3.188	1.633	1.460	0.063	0.551
2.000	2.687	2.750	2.834	3.267	5.500	3.307	1.633	1.460	0.063	0.551
2.125	2.811	2.875	2.952	3.386	5.750	3.503	1.696	1.460	0.063	0.709
2.250	2.937	3.000	3.110	3.504	6.500	3.622	1.696	1.460	0.063	0.709
2.375	3.187	3.125	3.228	3.700	6.500	3.818	1.696	1.460	0.063	0.709
2.500	3.311	3.375	3.464	3.858	6.500	3.976	1.838	1.622	0.063	0.709
2.625	3.437	3.500	3.543	3.937	7.000	4.055	1.838	1.622	0.063	0.709
2.750	3.562	3.625	3.78	4.252	7.000	4.370	1.838	1.622	0.063	0.709
