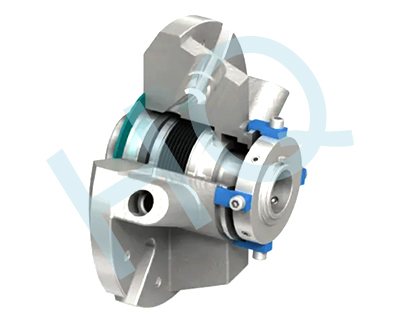

411.HQMB-J27(5615Q）

Categories: ,

Type： Metal Bellow Seal
Replacement： Crane 5615Q
Temperature： -30℃ to +205℃
Pressure： ≤2.1Mpa
Speed： ≤25m/s
Material： A,B,Q1,Q2,U1,U2,T,V,Graphite,T6,F,G,M
request a quote

Product descripton

d

(mm)

 D2 D1(min.) D1(max.) D3 L1 L2 L3 L4 L6 L5 L7 M Dm
24 39.7 41.3 48.0 101.6 65.4 34.4 49.6 13.5 50.8 18.9 15.8 13.3 71.2
25 39.7 41.3 48.0 101.6 65.4 34.4 49.6 13.5 50.8 18.9 15.8 13.3 71.2
28 42.9 44.5 51.2 104.8 67.3 36.7 52.4 13.5 54.0 18.1 15.0 13.3 74.5
30 44.5 46.1 56.5 108.0 65.1 36.7 52.4 13.5 54.0 15.9 12.7 13.3 79.9
32 46.0 47.6 58.3 108.0 69.3 36.7 52.4 13.5 54.0 20.1 16.9 13.3 81.6
33 49.3 50.8 61.5 111.1 69.3 36.7 52.4 13.5 54.0 20.1 16.9 13.3 84.6
35 49.3 50.8 61.5 111.1 69.3 36.7 52.4 13.5 54.0 20.1 16.9 13.3 84.6
38 55.5 57.2 68.1 123.8 69.7 37.8 54.0 15.1 55.5 18.9 15.7 13.3 91.4
40 58.7 60.3 71.4 127.0 69.7 37.8 54.0 15.1 55.5 18.9 15.7 14.3 95.7
43 61.1 63.0 74.4 133.4 69.7 37.8 54.0 15.1 55.5 18.9 15.7 14.3 98.4
45 61.1 63.0 74.1 133.4 69.7 37.8 54.0 15.1 55.5 18.9 15.7 14.3 98.4
48 65.1 66.7 74.1 133.4 69.7 37.8 54.0 15.1 55.5 18.9 15.7 14.3 98.4
50 68.3 70.0 76.6 139.7 75.3 40.7 58.7 27 60.3 19.7 16.5 14.3 101.0
53 71.4 73.0 85.3 148.8 75.3 40.7 58.7 15.1 60.3 19.7 16.5 17.4 113.0
55 72.9 75.0 85.3 148.8 75.3 40.7 58.7 15.1 60.3 19.7 16.5 17.4 113.0
58 74.6 76.2 88.5 165.1 75.3 40.7 58.7 15.1 60.3 19.7 16.5 17.4 116.0
60 77.8 79.4 91.7 165.1 77.8 43.6 62.6 15.9 64.2 18.3 15.2 17.4 119.0
63 84.1 85.7 98.8 171.5 75.7 43.6 65.1 15.9 66.7 13.8 10.6 17.4 127.0
65 84.1 85.7 98.8 171.5 75.7 43.6 65.1 15.9 66.7 13.8 10.6 17.4 127.0
68 90.5 92.1 103.2 171.5 78.4 41.3 63.5 15.9 65.1 18.1 14.9 17.4 131.3
70 90.5 92.1 103.2 171.5 78.4 41.3 63.5 15.9 65.1 18.1 14.9 17.4 131.3
75 100 101.6 113.5 196.9 78.4 45.4 65.1 17.4 66.7 16.5 13.4 20.6 145.3

d

(inch)

 D2 D1(min) D1(max) D3 L1 L2 L3 L4 L6 L5 L7 M Dm Turn   Diam
1.375 1.939 2.875 3.023 5.375 2.728 1.446 2.062 0.625 2.125 0.791 0.666 0.562 4.062 3.268
1.75 2.406 3.500 3.925 6.500 2.744 1.487 2.125 0.656 2.187 0.744 0.619 0.687 5.093 3.885
1.875 2.549 3.625 3.734 6.500 2.744 1.316 1.954 0.485 2.017 0.915 0.79 0.687 5.093 **
2.125 2.798 3.875 4.250 7.156 2.963 1.570 2.282 0.749 2.407 0.806 0.681 0.687 5.687 4.264
2.500 3.301 4.750 4.875 8.000 2.980 1.697 2.047 0.656 2.532 0.698 0.573 0.687 6.062 5.139
2.625 3.551 4.625 4.740 8.000 3.088 1.617 2.329 0.578 2.454 0.884 0.759 0.687 6.062 ***
2.750 3.551 4.750 4.875 8.000 3.088 1.697 2.407 0.656 2.532 0.806 0.681 0.687 6.062 5.139

d

(inch)

 D2 D1(min.) D1(max.) D3 L1 L2 L3 L4 L6 L5 L7 M Dm
1.000 1.564 1.625 1.889 4.000 2.575 1.353 1.954 0.531 2.000 0.746 0.621 0.525 2.805
1.125 1.689 1.750 2.015 4.125 2.651 1.446 2.062 0.531 2.125 0.714 0.589 0.525 2.933
1.250 1.812 1.875 2.294 4.250 2.728 1.446 2.062 0.531 2.125 0.791 0.666 0.525 3.213
1.375 1.939 2.000 2.421 4.375 2.728 1.446 2.062 0.531 2.125 0.791 0.666 0.525 3.338
1.500 2.187 2.250 2.680 4.875 2.744 1.487 2.125 0.593 2.187 0.744 0.619 0.525 3.599
1.625 2.312 2.375 2.812 5.00 2.744 1.487 2.125 0.593 2.187 0.744 0.619 0.562 3.766
1.750 2.406 2.480 2.918 5.250 2.744 1.487 2.125 0.593 2.187 0.744 0.619 0.562 3.875
1.875 2.549 2.625 2.918 5.250 2.744 1.487 2.125 0.593 2.187 0.744 0.619 0.562 3.875
2.000 2.687 2.750 3.015 5.500 2.963 1.601 2.312 1.063 2.375 0.775 0.650 0.562 4.000
2.125 2.798 2.875 3.360 5.859 2.963 1.601 2.312 0.593 2.375 0.775 0.650 0.687 4.469
2.250 2.937 3.000 3.485 6.500 2.963 1.601 2.312 0.593 2.375 0.775 0.650 0.687 4.566
2.375 3.062 3.125 3.610 6.500 3.063 1.717 2.466 0.625 2.528 0.722 0.597 0.687 4.719
2.500 3.301 3.375 3.891 6.750 2.98 1.717 2.563 0.625 2.625 0.542 0.417 0.687 5.000
2.625 3.551 3.625 4.062 6.750 3.088 1.625 2.500 0.625 2.562 0.713 0.588 0.687 5.170
2.750 3.551 3.625 4.062 6.750 3.088 1.625 2.500 0.625 2.562 0.713 0.588 0.687 5.170
2.875 3.687 3.750 4.186 7.000 3.088 1.725 2.500 0.625 2.562 0.713 0.588 0.687 5.312
3.000 3.937 4.000 4.469 7.750 3.088 1.787 2.562 0.685 2.625 0.651 0.562 0.812 5.720
