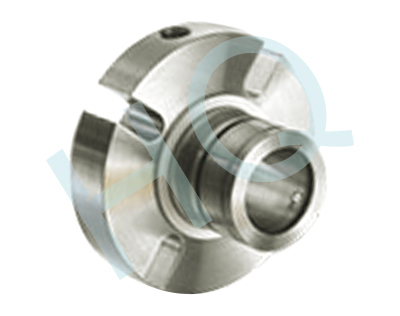

431.HQMB-F40(73）

Categories: FLEXA Replacements, Metal Bellow Seals

Type：	Metal Bellow Seal
Replacement：	FLEXA 73P
Temperature：	-30℃ to +204℃
Pressure：	≤2.0Mpa
Speed：	≤18m/s
Material：	A,B,Q1,Q2,U1,U2,E,V,K,G,F,M,M5,T6

Product descripton

d (mm)	D1	D2	D3	D4	D5	L1	L2	L3	L4	M
24	56.6	44.5	101.6	60.3	43.2	50.8	32.5	19.0	49.7	11.1
25	56.6	44.5	101.6	60.3	43.2	50.8	32.5	19.0	49.7	11.1
28	56.6	44.5	108.0	62.7	43.2	50.8	32.5	19.0	49.7	11.1
30	59.8	50.8	108.0	65.6	49.5	50.8	32.5	19.0	49.7	11.1
32	59.8	50.8	108.0	65.6	49.5	50.8	32.5	19.0	49.7	11.1
33	63.0	50.8	108.0	68.9	49.5	50.8	32.5	19.0	49.7	11.1
35	63.0	50.8	108.0	68.9	49.5	50.8	32.5	19.0	49.7	11.1
38	66.2	57.2	114.3	74.9	55.9	50.8	32.5	19.0	49.7	14.3
40	72.5	60.3	127	78.1	59.1	50.8	32.5	19.0	49.7	14.3
43	75.9	63.5	139.7	81.0	62.2	50.8	32.5	20.6	49.7	14.3
45	75.9	63.5	139.7	81.0	62.2	50.8	32.5	20.6	49.7	14.3
48	78.9	66.7	139.7	84.2	65.4	50.8	32.5	19.0	49.7	14.3
50	82.0	69.9	139.7	90.7	68.6	50.8	32.5	19.0	49.7	14.3
53	88.6	73.0	152.4	93.7	71.8	50.8	32.5	19.0	49.7	17.5
55	91.6	76.2	158.8	96.9	74.9	50.8	32.5	19.0	49.7	17.5
58	94.7	82.6	158.8	100.0	81.2	58.5	33.4	19.0	52.8	17.5
60	94.7	82.6	158.8	100.0	81.2	58.8	33.4	19.0	52.8	17.5
63	97.9	85.7	165.1	100.0	84.3	51.7	33.4	19.0	51.0	17.5
65	103.4	92.1	165.1	106.4	90.4	51.7	33.4	19.0	52.1	17.5
68	109.7	95.2	190.5	112.7	92.7	51.7	33.4	19.0	52.1	17.5
70	109.7	95.2	190.5	112.7	92.7	51.7	33.4	19.0	52.1	17.5
72	113.0	98.4	190.5	117.5	96.1	58.5	40.1	19.0	56.0	17.5
75	119.4	101.6	203.2	128.6	99.1	58.4	40.1	19.0	55.9	17.5
80	125.7	108.0	209.6	131.7	106.0	57.2	38.8	19.0	58.8	17.5
85	128.9	111.1	215.9	134.9	109.2	58.5	40.1	19.0	57.2	20.6
90	135.3	117.5	215.9	141.3	115.7	58.5	40.1	19.0	57.2	20.6
95	138.4	120.6	222.2	164.3	118.9	58.5	40.1	19.0	56.0	20.6

d (inch)	D1	D2	D3	D4	D5	L1	L2	L3	L4	M
1.000	2.230	1.75	4.00	2.375	1.700	2.000	1.280	0.75	1.958	0.437
1.250	2.230	1.75	4.25	2.463	1.700	2.000	1.280	0.75	1.958	0.437
1.250	2.355	2.000	4.25	2.583	1.950	2.000	1.280	0.75	1.958	0.437
1.375	2.480	2.000	4.25	2.713	1.950	2.000	1.280	0.75	1.958	0.437
1.500	2.605	2.250	4.50	2.950	2.200	2.000	1.280	0.75	1.958	0.562
1.625	2.855	2.375	5.00	3.075	2.325	2.000	1.280	0.75	1.958	0.562
1.750	2.990	2.500	5.50	3.188	2.450	2.000	1.280	0.812	1.958	0.562
1.875	3.105	2.625	5.50	3.313	2.575	2.000	1.280	0.75	1.958	0.562
2.000	3.230	2.750	5.50	3.570	2.700	2.000	1.280	0.75	1.958	0.562
2.125	3.490	2.875	6.00	3.688	2.825	2.000	1.280	0.75	1.958	0.687
2.250	3.605	3.000	6.25	3.813	2.950	2.000	1.280	0.75	1.958	0.687
2.375	3.730	3.250	6.25	3.938	3.195	2.303	1.312	0.75	2.080	0.687
2.500	3.855	3.375	6.50	3.938	3.320	2.035	1.312	0.75	2.003	0.687
2.625	4.070	3.625	6.50	4.188	3.560	2.035	1.312	0.75	2.053	0.687
2.750	4.320	3.750	7.50	4.438	3.650	2.035	1.312	0.75	2.053	0.687
2.875	4.450	3.875	7.50	4.625	3.785	2.303	1.580	0.75	2.008	0.687
3.000	4.700	4.000	8.00	5.062	3.900	2.300	1.577	0.75	2.200	0.687
3.125	4.825	4.125	8.00	5.062	4.050	2.303	1.580	0.75	2.25	0.687
3.250	4.950	4.250	8.25	5.188	4.175	2.250	1.527	0.75	2.267	0.687
3.375	5.075	4.375	8.50	5.312	4.300	2.303	1.580	0.75	2.250	0.812
3.500	5.200	4.500	8.50	5.438	4.430	2.303	1.580	0.75	2.203	0.812
3.625	5.325	4.625	8.50	5.562	4.555	2.303	1.580	0.75	2.250	0.812
3.750	5.450	4.750	8.75	5.687	4.680	2.303	1.580	0.75	2.203	0.812
3.875	5.575	5.125	8.75	5.812	4.805	2.303	1.580	0.75	2.250	0.812
4.500	6.450	5.750	9.50	6.500	5.680	2.303	1.580	0.75	2.350	0.812
