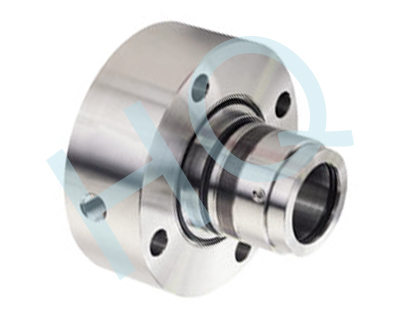

434.HQMB-F43(76)

Categories: FLEXA Replacements, Metal Bellow Seals

Type：	Metal Bellow Seal
Replacement：	FLEXA 76
Temperature：	-30℃ to +204℃
Pressure：	≤2.0Mpa
Speed：	≤22m/s
Material：	A,B,Q1,Q2,U1,U2,E,V,K,G,F,M,M5,T6

Product descripton

d (inch)	D1	D2	D3	D4	D5	L1	L2	L3	M
1.000	2.152	1.750	4.125	2.463	1.687	2.062	1.696	2.025	0.437
1.125	2.152	1.750	4.25	2.463	1.649	2.062	1.696	2.031	0.437
1.250	2.400	2.000	4.25	2.583	1.937	2.125	1.760	2.062	0.437
1.375	2.462	2.000	4.25	2.813	1.944	2.031	1.665	2.062	0.437
1.500	2.652	2.250	4.50	3.063	2.188	2.125	1.760	2.250	0.563
1.625	2.812	2.375	5.00	3.125	2.312	2.125	1.760	2.210	0.563
1.750	2.834	2.500	5.50	3.188	2.437	2.125	1.760	2.337	0.563
1.875	2.959	2.625	5.50	3.313	2.562	2.125	1.760	2.337	0.563
2.000	3.250	2.750	5.50	3.570	2.687	2.125	1.760	2.337	0.563
2.125	3.464	3.000	6.00	3.813	2.812	2.125	1.760	2.400	0.688
2.250	3.464	3.125	6.25	3.813	2.937	2.125	1.760	2.400	0.688
2.375	3.822	3.250	6.25	3.938	3.187	2.250	1.884	2.312	0.688
2.500	3.714	3.375	6.50	4.125	3.312	2.194	1.828	2.407	0.688
2.625	4.250	3.625	6.50	4.375	3.437	2.625	2.260	2.462	0.688
2.750	4.250	3.750	7.50	4.625	3.625	2.469	2.103	2.500	0.688
3.375	5.250	4.750	8.75	5.688	4.625	2.75	2.312	2.719	0.813
