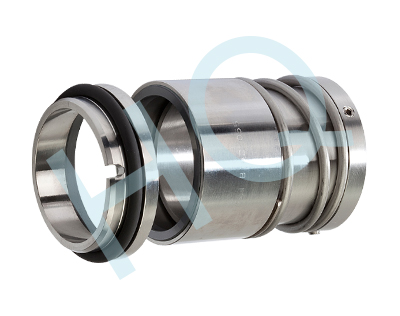

55.HQB182(B18212)

Categories: Brands, Latty Replacements, O-Ring Seals, Standard Mechanical Seals, Structure

Type：	O-Ring Seal
Replacement：	Latty B 18212
Temperature：	-20 to +180℃
Pressure：	≤25 Bar
Speed：	≤20m/s
Material：	B,A1,Q1,Q2,U2,P,E,N,V,F,G,Alfa

Product descripton

d (mm)	D1	D2	D3	D4 (min)	L1	L3	L4	L5	L6	L8
35	44	50	49	51	73.0	62.5	10.5	2.0	5	7.5
38	49	56	54	58	84.5	73.0	11.5	2.0	6	8.5
40	51	58	56	60	84.5	73.0	11.5	2.0	6	8.5
43	54	61	60	64	86.0	74.5	11.5	2.0	6	8.5
45	56	63	61	65	86.0	74.5	11.5	2.0	6	8.5
48	59	66	65	69	89.5	78.0	11.5	2.0	6	8.0
50	62	70	66	70	89.5	76.5	13.0	2.5	6	8.0
53	65	73	71	75	92.0	79.0	13.0	2.5	6	8.0
55	67	75	71	75	93.0	80.0	13.0	2.5	6	8.0
58	70	78	78	83	99.0	85.5	13.5	2.5	6	8.0
60	72	80	81	86	96.0	82.5	13.5	2.5	6	8.0
63	75	83	87	92	106.5	93.0	13.5	2.5	6	8.0
65	77	85	87	92	106.5	93.0	13.5	2.5	6	8.0
68	81	90	88	93	103.5	90.0	13.5	2.5	7	8.0
70	83	92	93	98	106.0	91.0	15.0	2.5	7	8.0
75	88	97	99	104	108.0	93.0	15.0	2.5	7	8.0
80	95	105	105	110	109.0	94.0	15.0	3.0	7	8.0
85	100	110	109	114	111.0	95.0	16.0	3.0	7	8.0
90	105	115	114	119	113.0	97.0	16.0	3.0	7	8.0
95	110	120	122	127	119.0	103.0	16.0	3.0	7	8.0
100	115	125	128	133	119.5	103.5	16.0	3.0	7	8.0
