607.HQSL-09

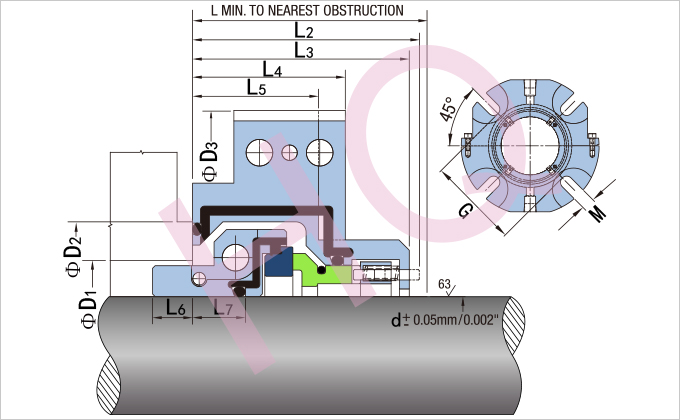

d	D1		D2	D3	L	L2	L3	L4	L5	L6	L7	G	M
mm	MIN.	MAX.	MIN.	D3	MIN.	L2	L3	L4	L5	L6	L7	G	M
40	57.15	70.61	76.96	139.70	54.10	52.58	50.29	38.10	31.75	9.53	12.07	80.98	14.27
45	60.33	69.85	76.20	139.70	54.10	52.58	50.29	38.10	31.75	9.53	12.07	84.15	14.27
50	66.68	76.20	82.55	146.05	54.10	52.58	50.29	38.10	31.75	9.53	12.07	90.50	14.27
55	74.63	85.73	92.08	158.75	54.10	52.58	50.29	38.10	31.75	9.53	12.07	100.00	17.48
60	76.20	88.90	95.25	158.75	54.10	52.58	50.29	38.10	31.75	9.53	12.07	100.00	17.48
65	88.90	99.19	105.54	177.80	59.69	58.17	50.50	41.28	34.93	9.27	13.84	114.30	17.48
70	88.90	99.19	105.54	177.80	59.69	58.17	50.50	41.28	34.93	9.27	13.84	114.30	17.48
75	95.25	111.13	117.48	190.50	59.69	58.17	50.50	41.28	34.93	9.27	13.84	120.65	17.48
80	98.43	110.31	116.66	196.85	59.69	58.17	50.50	41.28	34.93	9.27	13.84	127.00	17.48
85	107.95	123.19	129.54	203.20	59.69	58.17	50.50	41.28	34.93	9.27	13.84	133.35	20.62
90	114.30	132.59	138.94	228.60	72.14	69.85	66.68	46.99	38.86	12.32	16.26	150.83	20.62
95	114.30	132.59	138.94	228.60	72.14	69.85	66.68	46.99	38.86	12.32	16.26	150.83	20.62
100	120.65	138.13	144.48	228.60	72.14	69.85	66.68	46.99	38.86	12.32	16.26	150.83	20.62
105	127.00	144.48	150.83	241.30	72.14	69.85	66.68	46.99	38.86	12.32	16.26	163.53	20.62
110	133.35	150.83	157.18	241.30	72.14	69.85	66.68	46.99	38.86	12.32	16.26	163.53	20.62
115	133.35	152.40	158.75	241.30	72.14	69.85	66.68	46.99	38.86	12.32	16.26	163.53	20.62
120	139.70	157.18	163.53	254.00	72.14	69.85	66.68	46.99	38.86	12.32	16.26	176.23	20.62
125	146.05	163.53	169.88	254.00	72.14	69.85	66.68	46.99	38.86	12.32	16.26	176.23	20.62
130	152.40	173.05	179.40	292.10	72.14	69.85	66.68	46.99	38.86	12.32	16.26	204.77	23.83
135	158.75	180.16	186.51	292.10	72.14	69.85	66.68	46.99	38.86	12.32	16.26	204.77	23.83
140	158.75	176.23	182.58	292.10	72.14	69.85	66.68	46.99	38.86	12.32	16.26	204.77	23.83
145	165.10	182.58	188.93	292.10	72.14	69.85	66.68	46.99	38.86	12.32	16.26	204.77	23.83
150	171.45	188.93	195.28	292.10	72.14	69.85	66.68	46.99	38.86	12.32	16.26	204.77	23.83

d	D1	D2		D3	L	L2	L3	L4	L5	L6	L7	G	M
inch	MIN.	MAX.	MIN.	D3	MIN.	L2	L3	L4	L5	L6	L7	G	M
1.375	2.000	2.375	2.625	5.25	2.13	2.07	1.980	1.500	1.250	0.375	0.475	2.813	0.562
1.437	2.125	2.500	2.750	5.25	2.13	2.07	1.980	1.500	1.250	0.375	0.475	3.063	0.562
1.500	2.125	2.500	2.75	5.25	2.13	2.07	1.980	1.500	1.250	0.375	0.475	3.063	0.562
1.625	2.250	2.625	2.875	5.50	2.13	2.07	1.980	1.500	1.250	0.375	0.475	3.188	0.562
1.687	2.375	2.750	3.000	5.50	2.13	2.07	1.980	1.500	1.250	0.375	0.475	3.313	0.562
1.750	2.375	2.750	3.000	5.50	2.13	2.07	1.980	1.500	1.250	0.375	0.475	3.313	0.562
1.875	2.500	2.875	3.125	5.50	2.13	2.07	1.980	1.500	1.250	0.375	0.475	3.313	0.562
1.937	2.625	3.000	3.250	5.75	2.13	2.07	1.980	1.500	1.250	0.375	0.475	3.563	0.562
2.000	2.625	3.000	3.250	5.75	2.13	2.07	1.980	1.500	1.250	0.375	0.475	3.563	0.562
2.125	2.750	3.125	3.375	6.25	2.13	2.07	1.980	1.500	1.250	0.375	0.475	3.937	0.562
2.187	3.000	3.375	3.625	6.25	2.13	2.07	1.980	1.500	1.250	0.375	0.475	3.937	0.562
2.250	3.000	3.375	3.625	6.25	2.13	2.07	1.980	1.500	1.250	0.375	0.475	3.937	0.562
2.375	3.000	3.500	3.750	6.25	2.13	2.07	1.980	1.500	1.250	0.375	0.475	3.937	0.562
2.437	3.250	3.750	4.000	6.75	2.35	2.29	2.185	1.625	1.375	0.365	0.545	4.250	0.688
2.500	3.250	3.750	4.000	6.75	2.35	2.29	2.185	1.625	1.375	0.365	0.545	4.250	0.688
2.625	3.500	3.905	4.155	7.00	2.35	2.29	2.185	1.625	1.375	0.365	0.545	4.500	0.688
2.687	3.500	3.905	4.155	7.00	2.35	2.29	2.185	1.625	1.375	0.365	0.545	4.500	0.688
2.750	3.500	4.188	4.155	7.00	2.35	2.29	2.185	1.625	1.375	0.365	0.545	4.500	0.688
2.875	3.750	4.375	4.438	7.50	2.35	2.29	2.185	1.625	1.375	0.365	0.545	4.750	0.688
2.937	3.750	4.375	4.625	7.50	2.35	2.29	2.185	1.625	1.375	0.365	0.545	4.750	0.688
3.000	3.750	4.313	4.625	7.50	2.35	2.29	2.185	1.625	1.375	0.365	0.545	4.750	0.688
3.125	3.875	4.500	4.563	7.75	2.35	2.29	2.185	1.625	1.375	0.365	0.545	4.875	0.688
3.187	4.000	4.500	4.750	7.75	2.35	2.29	2.185	1.625	1.375	0.365	0.545	5.000	0.688
3.250	4.000	4.750	4.750	7.75	2.35	2.29	2.185	1.625	1.375	0.365	0.545	5.000	0.688
3.375	4.250	4.750	5.000	8.00	2.35	2.29	2.185	1.625	1.375	0.365	0.545	5.250	0.688
3.500	4.250	5.188	5.000	8.00	2.35	2.29	2.185	1.625	1.375	0.365	0.545	5.250	0.688
3.625	4.500	5.188	5.438	9.00	2.84	2.75	2.625	1.850	1.530	0.485	0.640	5.938	0.812
3.750	4.500	5.438	5.438	9.00	2.84	2.75	2.625	1.850	1.530	0.485	0.640	5.938	0.812
3.875	4.750	5.438	5.688	9.00	2.84	2.75	2.625	1.850	1.530	0.485	0.640	5.938	0.812
3.937	4.750	5.438	5.688	9.00	2.84	2.75	2.625	1.850	1.530	0.485	0.640	5.938	0.812
4.000	4.750	5.688	5.688	9.00	2.84	2.75	2.625	1.850	1.530	0.485	0.640	5.938	0.812
4.125	5.000	5.688	5.938	9.50	2.84	2.75	2.625	1.850	1.530	0.485	0.640	6.438	0.812
4.250	5.000	5.938	5.938	9.50	2.84	2.75	2.625	1.850	1.530	0.485	0.640	6.438	0.812
4.375	5.250	5.938	6.188	9.50	2.84	2.75	2.625	1.850	1.530	0.485	0.640	6.438	0.812
4.500	5.250	6.188	6.188	9.50	2.84	2.75	2.625	1.850	1.530	0.485	0.640	6.438	0.812
4.750	5.500	6.438	6.438	10.00	2.84	2.75	2.625	1.850	1.530	0.485	0.640	6.938	0.812
5.000	5.750	6.438	6.688	10.00	2.84	2.75	2.625	1.850	1.530	0.485	0.640	6.938	0.812
5.125	6. HUA QIU Seals specializes in high-performance mechanical seals, with 30+ years of expertise in designing reliable, innovative sealing solutions for various industries. Products Standard Mechanical Seals Cartridge Seals Metal Bellow Seals Mixer and Agitator Seals Kettle Pump Seals Dry Gas Seals Flygt Seals Grundfos Seals Oil Seals O.E.M.Seals About Facilities Quality Control Certification Contact Contact No.45 Lane 578 TianTong Southern Road NingBo City China 0086 13616570630 [email protected] [email protected] 008613616570630 [email protected] 008613777113081 [email protected] 008615158322674 [email protected] 008613738440297 Copyright 2024 Hua Qiu Seal All right reserved. REQUEST A QUOTE To help you with your needs fill out the form below to get a free quote in 24hours. Name Email Your Company Your Phone Message Search

Type：	Wet-Running Cartridge Split Seal
Replacement：	Crane 3740
Temperature：	≤121℃
Pressure：	≤30.0 Bar
Speed：	≤17.7m/s
Material：	A,B,Q,G,M,V

Product descripton
