628.HQCFS-14(Espey WKA802HD)

Categories: Carbon Floating Ring Seals

Type：	Carbon Floating Ring Seals
Replacement：	Burgmann Espey WKA802HD
Temperature：	-120 to +225℃
Pressure：	≤140 Bar
Speed：	≤240 m/s
Material：	B,Q2,U2,P,E,N,V,F,G,Alfa

Product descripton

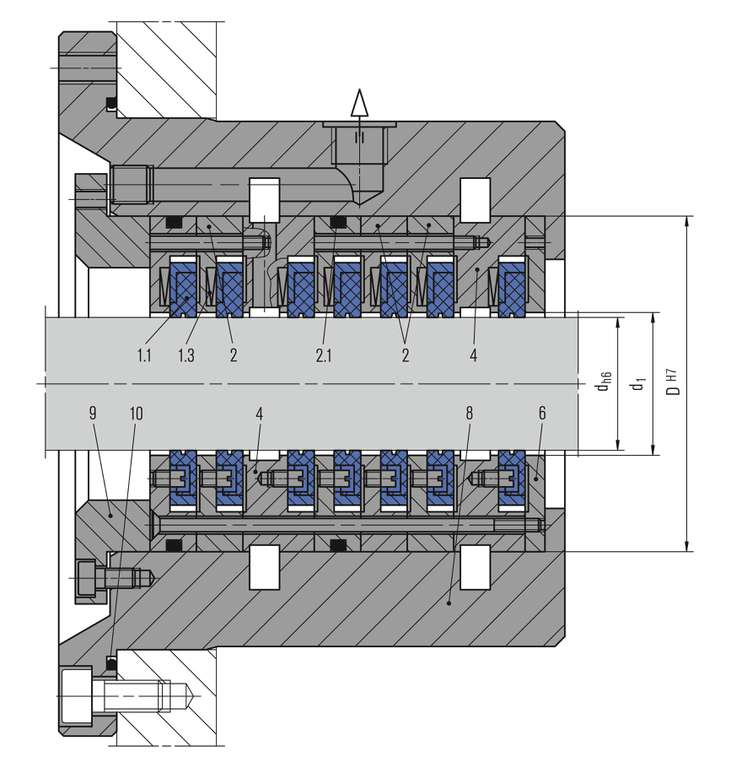

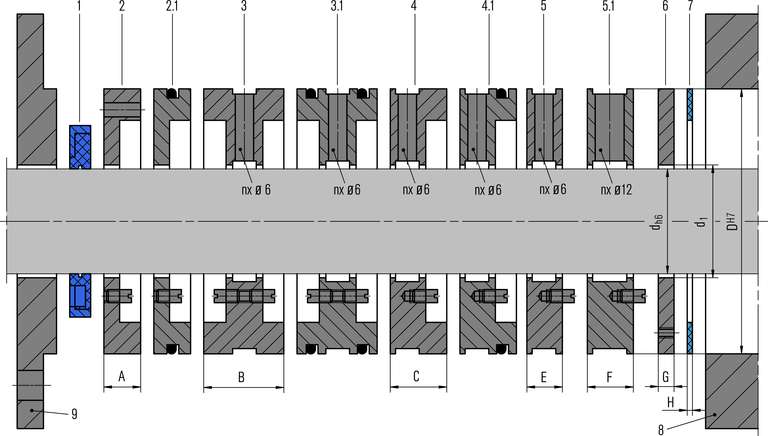

dh6 (mm)	DH7	d1	A	B	C	E	F	G	H
20	80	22	10	21	16	11	17	5	1
25	85	27	10	21	16	11	17	5	1
30	90	32	10	21	16	11	17	5	1
35	95	37	10	21	16	11	17	5	1
40	100	42	10	21	16	11	17	5	1
45	105	47	10	21	16	11	17	5	1
50	110	52	10	21	16	11	17	5	1
55	115	57	10	21	16	11	17	5	1
60	120	62	10	21	16	11	17	5	1
65	125	67	10	21	16	11	17	5	1
70	130	72	10	21	16	11	17	5	1
75	135	77	10	21	16	11	17	5	1
80	140	82	10	21	16	11	17	5	1
85	145	87	10	21	16	11	17	5	1
90	150	92	10	21	16	11	17	5	1
95	155	97	10	21	16	11	17	5	1
100	160	102	10	21	16	11	17	5	1
105	165	107	10	21	16	11	17	5	1
110	170	112	10	21	16	11	17	5	1
115	175	117	10	21	16	11	17	5	1
120	190	122	12	27	21	15	20	8	2
130	200	132	12	27	21	15	20	8	2
140	210	142	12	27	21	15	20	8	2
150	220	152	12	27	21	15	20	8	2
160	230	162	14	31	21	15	20	8	2
170	240	172	14	31	21	15	20	8	2
180	250	182	14	31	21	15	20	8	2
190	260	192	14	31	21	15	20	8	2
200	270	202	14	31	21	15	20	8	2
210	280	212	14	31	21	15	20	8	2
220	290	222	14	31	21	15	20	8	2
230	300	232	14	31	21	15	20	8	2
240	310	242	14	31	21	15	20	8	2
250	320	252	14	31	21	15	20	8	2
260	330	262	14	31	21	15	20	8	2
270	340	272	14	31	21	15	20	8	2
280	350	282	14	31	21	15	20	8	2
290	360	292	14	31	21	15	20	8	2
300	370	302	14	31	21	15	20	8	2
