66.HQ1527/HQ1528

Categories: Brands, Chinese Standard, O-Ring Seals, Other Seals, Standard Mechanical Seals, Structure

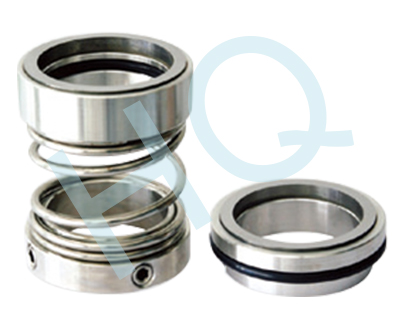

Type：	O-Ring Mechanical Seal
Replacement：	SEALOL1527, Suit Southb SP, CDM, CDMF Pumps
Temperature：	-20℃ to +180℃
Pressure：	≤1Mpa
Speed：	≤15m/s
Material：	Q2.U2,B,V1,P,E,V,F,G

Product descripton

HQ1527

d (mm)	D1	D2	D3	d1	L1	L2	L3
d (mm)	D1	D2	D3	d1	L1	L2	L3
18	33	27	32	3	35	10.0	17.0
20	35	29	34	3	35	10.0	17.0
22	37	31	36	3	35	10.0	17.0
24	39	33	38	3	40	10.0	17.0
25	40	34	39	3	40	10.0	17.0
28	43	37	42	3	40	10.0	17.0
30	45	39	44	3	40	10.0	17.0
32	48	42	46	3	45	10.0	17.0
33	48	42	47	3	45	10.0	17.0
35	50	44	49	3	45	10.0	17.0
38	56	49	54	4	44	11.0	18.0
40	58	51	56	4	44	11.0	18.0
43	61	54	59	4	49	11.0	18.0
45	63	56	61	4	49	11.0	18.0
48	66	59	64	4	49	11.0	18.0
50	68	62	66	4	47	13.0	20.0
53	70	65	69	4	57	13.0	20.0
55	75	67	71	4	57	13.0	20.0
58	78	70	78	4	57	13.0	20.0
60	80	72	80	4	57	13.0	20.0
63	83	75	83	4	57	13.0	20.0
65	85	77	85	4	67	13.0	20.0
68	90	81	88	4	64.7	15.3	22.0
70	92	83	90	4	64.7	15.3	22.0
75	97	88	99	4	64.7	15.3	22.0
80	105	95	104	4	74.3	15.7	22.5
85	110	100	109	4	74.3	15.7	22.5
90	115	105	114	4	74.3	15.7	22.5
95	120	110	119	4	74.3	15.7	22.5
100	125	115	124	4	74.3	15.7	22.5

HQ1528

d (mm)	D1	D2	D3	D4 (mim)	L1	L2
d (mm)	D1	D2	D3	D4 (mim)	L1	L2
18	33	27	32	34	35.0	10.0
20	35	29	34	36	35.0	10.0
22	37	31	36	38	35.0	10.0
24	39	33	38	40	40.0	10.0
25	40	34	39	41	40.0	10.0
28	43	37	42	44	40.0	10.0
30	45	39	44	46	40.0	10.0
32	48	42	46	48	45.0	10.0
33	48	42	47	49	45.0	10.0
35	50	44	49	51	45.0	10.0
38	56	49	54	58	44.0	11.0
40	58	51	56	61	44.0	11.0
43	61	54	59	63	49.0	11.0
45	63	56	61	65	49.0	11.0
48	66	59	64	68	49.0	11.0
50	70	62	66	70	47.0	13.0
53	73	65	69	73	57.0	13.0
55	75	67	71	75	57.0	13.0
58	78	70	78	83	57.0	13.0
60	80	72	80	85	57.0	13.0
63	83	75	83	88	57.0	13.0
65	85	77	85	90	67.0	13.0
68	90	81	88	93	64.7	15.3
70	92	83	90	95	64.7	15.3
75	97	88	99	104	64.7	15.3
80	105	95	104	109	74.3	15.7
85	110	100	109	114	74.3	15.7
90	115	105	114	119	74.3	15.7
95	120	110	119	124	74.3	15.7
100	125	115	124	129	74.3	15.7
