Categories: A.B.S., AES Replacement, Brands, Burgmann Replacement, O.E.M.Seals, Pumps

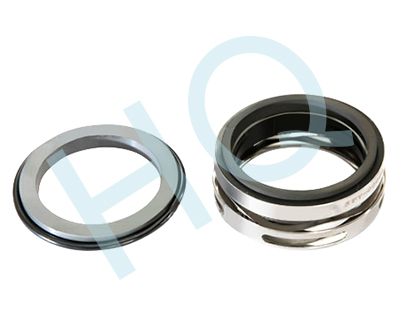

| Type： | ABS Pump Seal |
| Replacement： | AES WP03S, Burgmann MG7 |
| Temperature： | -20 to +160℃ |
| Pressure： | ≤1.4Mpa |
| Speed： | ≤15m/s |
| Material： | B,Q2,U2,P,E,N,V,F,G,Alfa |
| d(mm) | D1 | D3 | L1 | L2 |
| 32 | 46.5 | 47.6 | 20.0 | 5.4 |
| 40 | 56.0 | 57.9 | 20.0 | 6.8 |
| 48 | 67.0 | 62.0 | 15.6 | 14.5 |
| 55 | 72.0 | 73.4 | 20.0 | 7.9 |
| 60 | 75.0 | 80.5 | 21.0 | 10.9 |
| 75 | 93.2 | 97.2 | 26.8 | 9.9 |
| d(inch) | D1 | D3 | L1 | L2 |
| 1.260 | 1.831 | 1.874 | 0.787 | 0.213 |
| 1.575 | 2.205 | 2.280 | 0.787 | 0.268 |
| 1.890 | 2.638 | 2.441 | 0.614 | 0.571 |
| 2.165 | 2.835 | 2.890 | 0.787 | 0.311 |
| 2.362 | 2.953 | 3.169 | 0.827 | 0.429 |
| 2.953 | 3.669 | 3.82 | 1.055 | 0.390 |
