79.HQ104aB/HQ104aU

Categories: Brands, Chinese Standard, O-Ring Seals, Other Seals, Standard Mechanical Seals, Structure

Type：	O-Rng Mechanical Seal
Temperature：	-20 to +200℃
Pressure：	≤0.8Mpa
Speed：	≤13m/s
Material：	B,Q2,U2,P,E,N,V,F,G,Alfa

Product descripton

HQ104aB

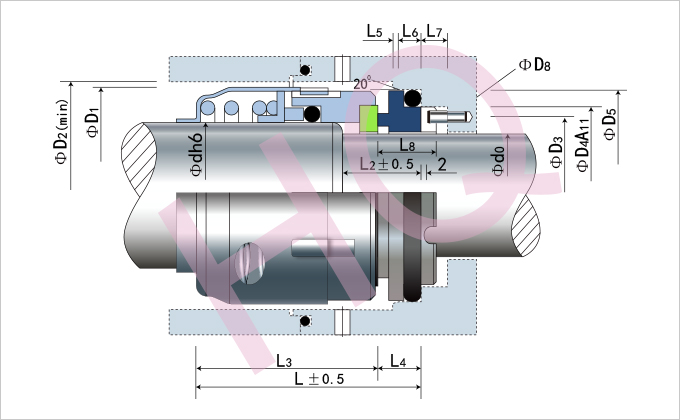

d(mm)	d0	D1	D2	D3	D4	D5	D8	L	L2	L3	L4	L5	L6	L7	L8
d(mm)	d0	D1	D2	D3	D4	D5	D8	L	L2	L3	L4	L5	L6	L7	L8
16	11	33	36	21	25	33	2	45.5	20	33.5	12	1.5	5.5	7	16
18	13	35	38	23	28	36	2	46.5	20	34.5	12	1.5	5.5	7	16
20	15	37	40	25	30	40	3	49.5	22	35.5	14	2.0	6.5	8	19
22	17	39	42	27	32	42	3	51.5	22	37.5	14	2.0	6.5	8	19
25	20	42	45	30	35	45	3	51.5	22	37.5	14	2.0	6.5	8	19
28	22	45	48	33	38	48	3	54.5	22	40.5	14	2.0	6.5	8	19
30	25	52	55	35	40	50	3	59.0	23	45.0	14	2.0	6.5	8	19
35	28	57	60	40	45	55	3	61.0	24	47.0	14	2.0	6.5	8	19
40	34	62	65	45	50	60	3	64.0	24	50.0	14	2.0	6.5	8	19
45	38	67	70	50	55	65	3	69.0	24	55.0	14	2.0	6.5	8	19
50	44	72	75	55	60	70	3	72.0	24	58.0	14	2.5	6.5	8	19
55	48	77	80	60	65	75	3	74.0	24	60.0	14	2.5	6.5	8	19
60	52	82	85	65	70	80	3	74.0	24	60.0	14	2.5	6.5	8	19
65	58	92	95	73	80	90	3	84.0	27	67.0	17	2.5	6.5	8	22
70	62	97	100	78	85	97	3	88.0	32	69.0	19	2.5	7.5	9	25
75	66	102	105	83	90	102	3	88.0	32	69.0	19	2.5	7.5	9	25
80	72	107	110	88	95	107	3	93.0	32	74.0	19	3.0	7.5	9	25
85	76	112	115	93	100	112	3	93.0	32	74.0	19	3.0	7.5	9	25
90	82	117	120	98	105	117	3	94.0	32	75.0	19	3.0	7.5	9	25
95	85	122	125	103	110	122	3	94.0	32	75.0	19	3.0	7.5	9	25
100	90	127	130	108	115	127	3	94.0	32	75.0	19	3.0	7.5	9	25

HQ104aU

d(mm)	D1	D2	D3	D4	D5	D8	L	L3	L4	L5	L6	L7	L8
16	33	36	21	25	33	2	36.5	24.5	12	1.5	5.5	7	16
18	35	38	23	28	36	2	37.5	25.5	12	1.5	5.5	7	16
20	37	40	25	30	40	3	40.5	26.5	14	2.0	6.5	8	19
22	39	42	27	32	42	3	42.5	28.5	14	2.0	6.5	8	19
25	42	45	30	35	45	3	42.5	28.5	14	2.0	6.5	8	19
28	45	48	33	38	48	3	45.5	31.5	14	2.0	6.5	8	19
30	52	55	35	40	50	3	49.0	35.0	14	2.0	6.5	8	19
35	57	60	40	45	55	3	51.0	37.0	14	2.0	6.5	8	19
40	62	65	45	50	60	3	54.0	40.0	14	2.0	6.5	8	19
45	67	70	50	55	65	3	59.0	45.0	14	2.0	6.5	8	19
50	72	75	55	60	70	3	62.0	48.0	14	2.5	6.5	8	19
55	77	80	60	65	75	3	64.0	50.0	14	2.5	6.5	8	19
60	82	85	65	70	80	3	64.0	50.0	14	2.5	6.5	8	19
65	92	95	73	80	90	3	72.0	55.0	17	2.5	6.5	8	22
70	97	100	78	85	97	3	76.0	57.0	19	2.5	7.5	9	25
75	102	105	83	90	102	3	76.0	57.0	19	2.5	7.5	9	25
80	107	110	88	95	107	3	81.0	62.0	19	3.0	7.5	9	25
85	112	115	93	100	112	3	81.0	62.0	19	3.0	7.5	9	25
90	117	120	98	105	117	3	82.0	63.0	19	3.0	7.5	9	25
95	122	125	103	110	122	3	82.0	63.0	19	3.0	7.5	9	25
100	127	130	108	115	127	3	82.0	63.0	19	3.0	7.5	9	25
